Underground Non-Detectable Tapes

Underground Non-Detectable Tapes

Nominal Overall Thickness: 4.00 mil lead-free polyethylene + or – 10% difference


Polyethylene Print Method: Reverse Printed in English Language. Arabic up on the request


Print Design: Solid


Print Design Color-Coding: APWA Color-Code


Width: 3’’ and 6’’


Roll Length: 1000 ft

Technical Specs

Description

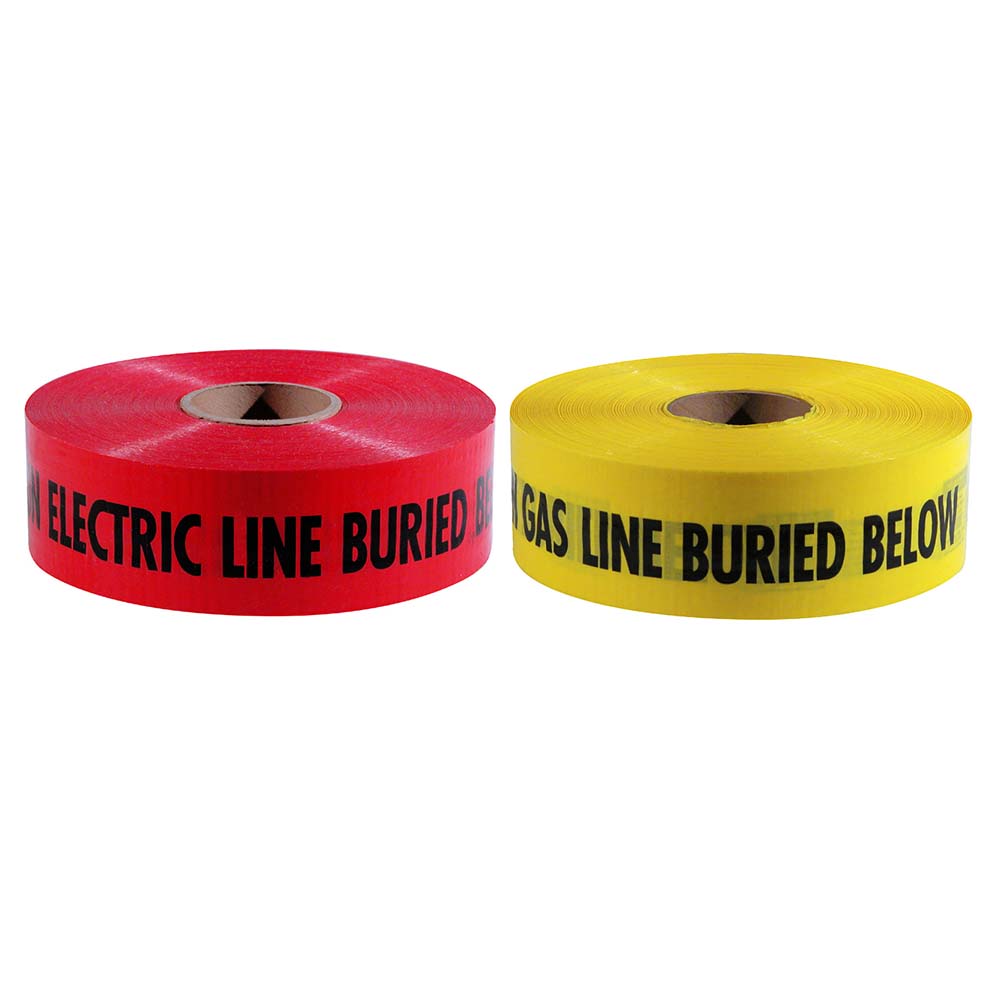

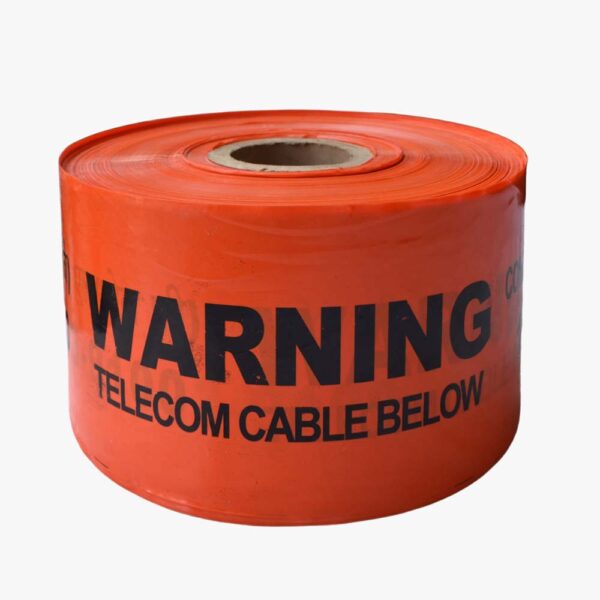

Underground Non-Detectable Warning Tape is a 4-mil thick, NON-ADHESIVE, polyethylene (PE) film tape used to help prevent damage to underground utility lines during excavation. Non-Detectable tape is resistant to underground elements, heavy metal-free, and will not turn black over time. Available in 3-inch and 6-inch-wide x 1000-feet rolls, this bright warning tape alerts anyone to the presence of lines and cables below ground.

Underground Non-Detectable Warning Tape can be used in construction, turf and irrigation, CATV, utilities, and by pipeline and mechanical contractors. Following code parameters, you can bury this tape above electrical lines, gas pipes, communication cables, and other utility installations. Non-Detectable Warning tape is buried 4 in. to 6 in. below the surface so that it is dug up prior to reaching a depth that could cause damage to the line or person(s) digging.



Highly visible warning tapes

High quality monolayer PE films

Oil resistance tapes

Resistance to corrosion

All Underground tapes made to APWA approved colors to meet or exceed industry standards

Coloring Coding Descriptions

Coloring Coding Descriptions

The following recommendations shall be followed when permanently marking underground facilities:

  1. Markers must be clearly visible.
  2. Marker material shall be durable in nature.
  3. Mark culverts if not readily visible. Mark both ends of all non-visible underground facilities.
  4. Identify type of underground facility if not recognizable from the surface.



Underground facilities shall be marked in accordance with the following designated color code

Color Codes

Color Code Description Application
RED White on Red Electric power lines, cables or conduit, and lighting cables
YELLOW Black on Yellow Gas, oil, steam, petroleum, or gaseous materials
ORANGE Black on Orange Communication, alarm or signal lines, cables or conduits, and fiber
BLUE White on Blue Potable water
PURPLE White on Purple Slurry, irrigation and reclaimed water
GREEN White on Green Sewers, drainage facilities or other drain lines
