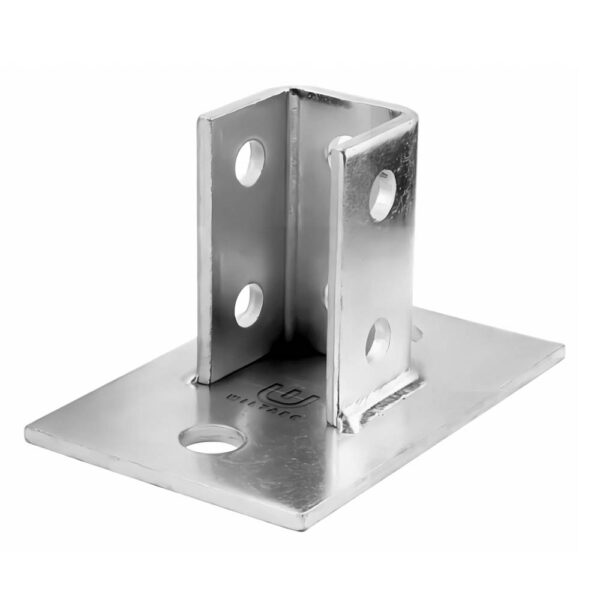

Strut Post Base – 2×6

Strut Post Base – 2x6
Strut Post Base – 2x6 - Image 2

Strut Post Base – 2×6

Size Range: 80 mm x 150 mm [2] – 42mmx42 mm [6]

Material: Steel DD11 | 1.0332

Finish: Electro galvanized Zinc Plated (EN ISO 2081)

Technical Specs

Description

Designed to connect Strut Fixing Rail profiles to wall, floor or ceilings as safe and practical solutions for medium duty applications. The U-saddle CO2 welded on large base plate.  Rail can be securely affixed with slot downwards or sideways

Additional Specs

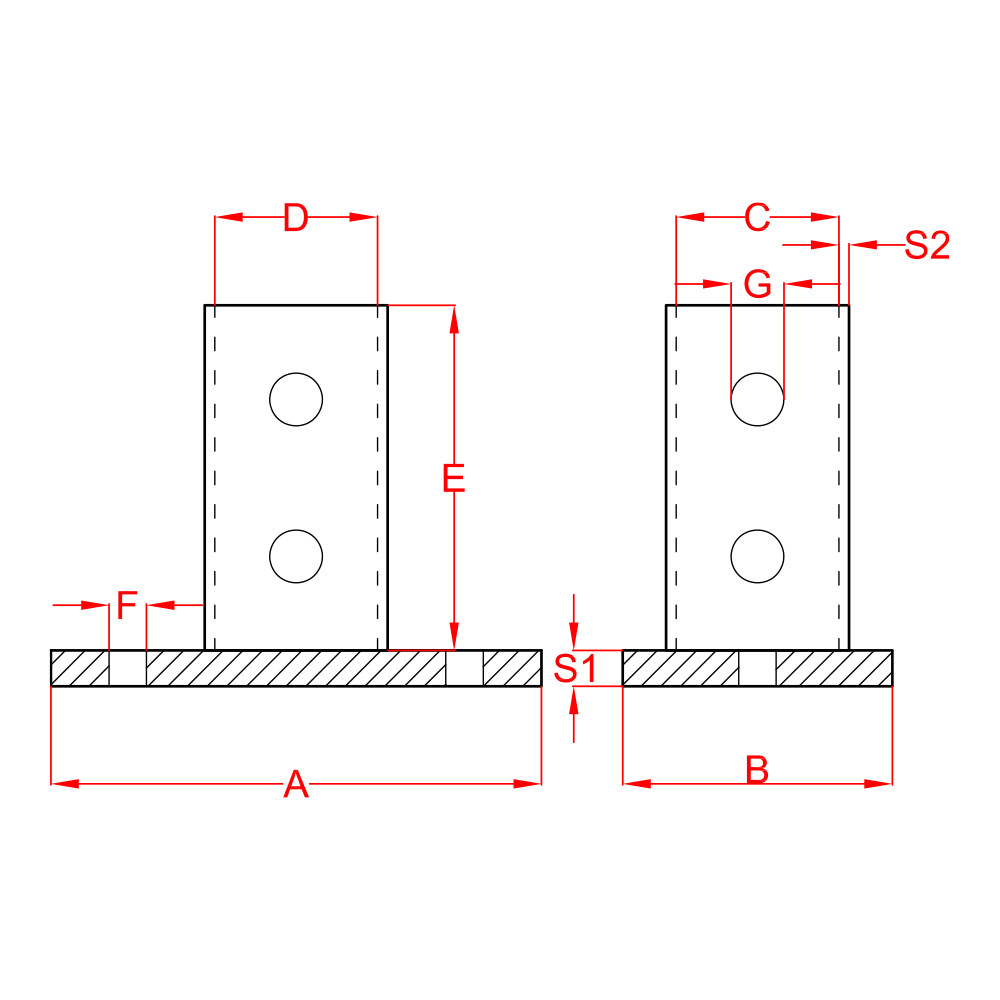

Part No. PLATE SIZE   POST SIZE F G Weight

per 1 pcs


A B S1 C D E S2
mm mm mm mm mm mm mm mm mm kg
WSPB26A 80 150 6 42 42 90 4 14 14 0.9
WSPB26B 80 150 8 42 42 90 6 14 14 1.2
