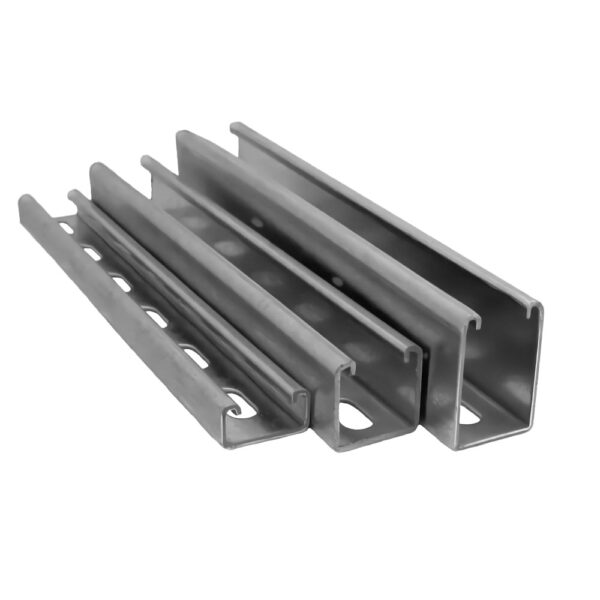

Strut Fixing Rail

Strut Fixing Rail

Size Range: 41×21 , 41×41 , 41×60


Material: Carbon steel acc. to DIN EN 10025


Finish:
Electro galvanization [Cold- Galvanization]
acc. to ASTM B633/ ASTM F 1941 –EN ISO 4042

Hot Dipped Galvanized (HDG) acc. To ASTM A153/153M – ASTM A123/123M – EN ISO 1461/EN ISO 10684

Technical Specs

Description

Designed for minor up to medium load range. Sustain remarkable loads due to its excellent design. Quick and easy fixing with continuous perforation

The option for continuous perforation is available upon request, allowing for a seamless and uninterrupted series of perforations. Alternatively, the product can be provided without perforations. In either case, the distance between the rail end and the first hole remains consistently equal, ensuring precise and standardized measurements.

Additional Specs

Part No. SIZE LENGTH

L

Weight

per 1 pcs

2000 mm length

Moment of

Inertia

Section

Modulus

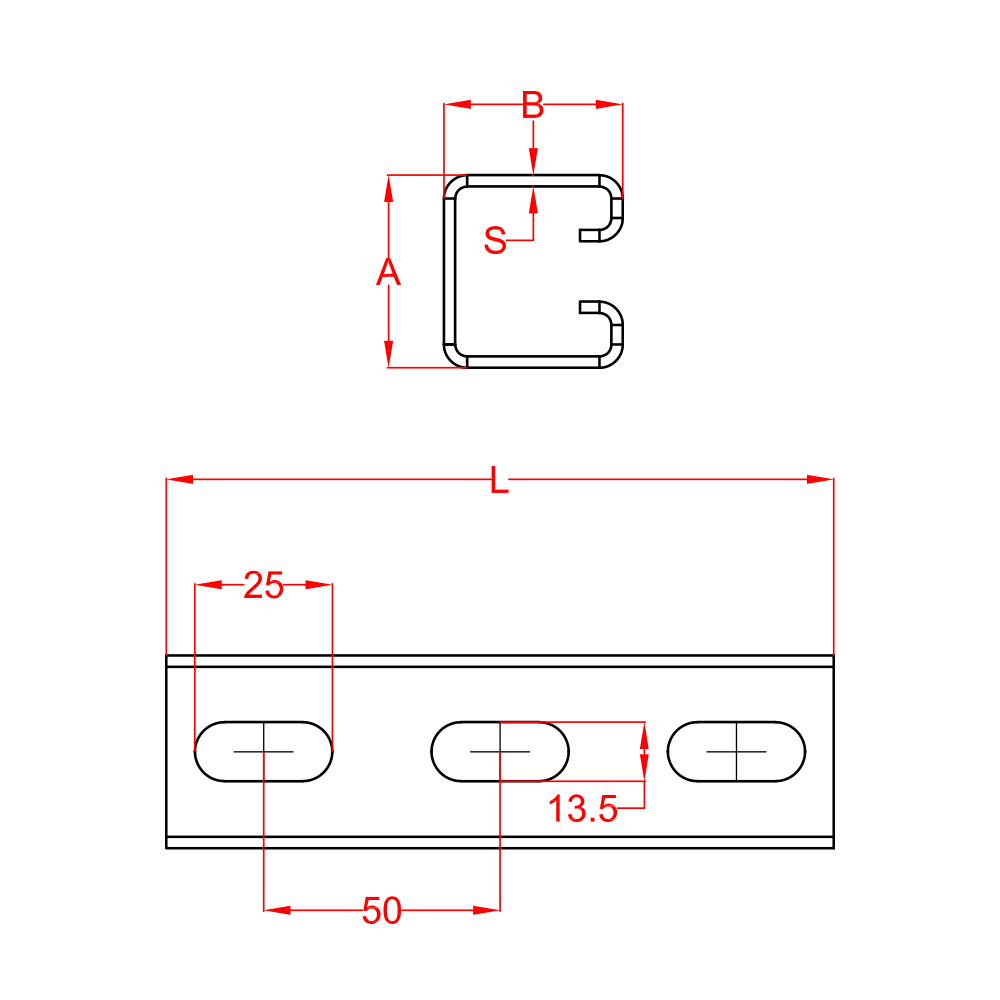

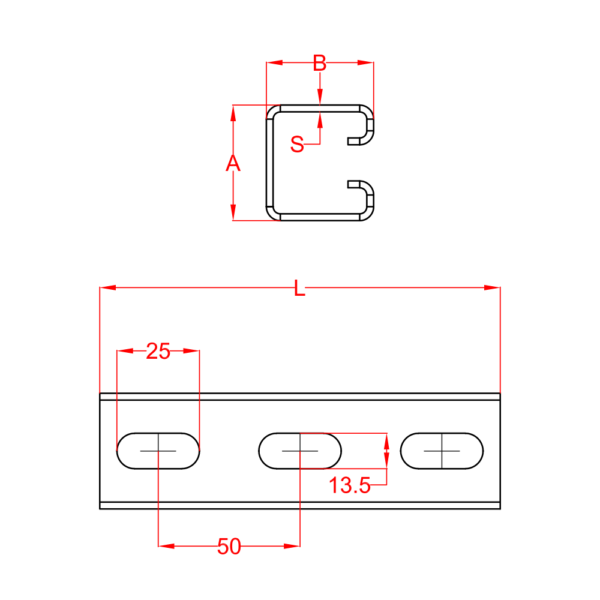

A B S IY IZ WY WZ
mm mm mm mm kg [cm4] [cm4] [cm3] [cm3]
WSFR421 41 21 2 2000 2.94 9610 46350 880 2260
WSFR422 41 21 2.5 2000 3.54 11394 56100 1041 2736
WSFR441 41 41 2 2000 4.1 53200 76800 2565 3745
WSFR442 41 41 2.5 2000 4.98 63660 93530 3104 4560
WSFR461 41 61 2.5 2000 6.52 166855 126735 5496 6185
WSFR462 41 61 3 2000 7.72 194245 147530 6377 7197
