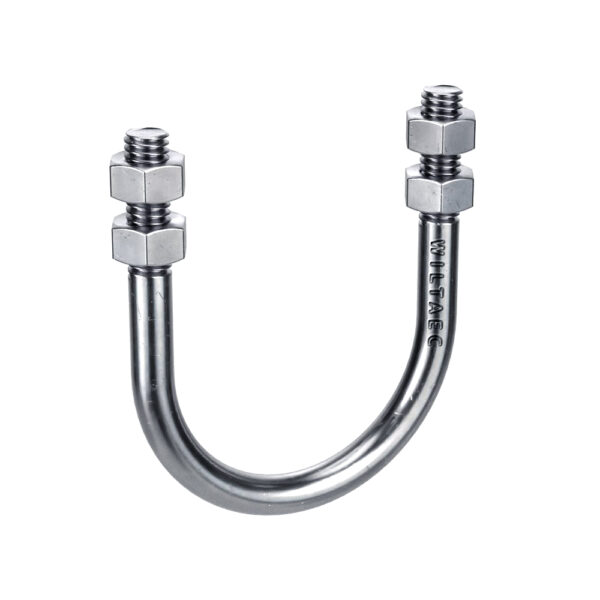

Standard U – BOLT

Standard U – BOLT

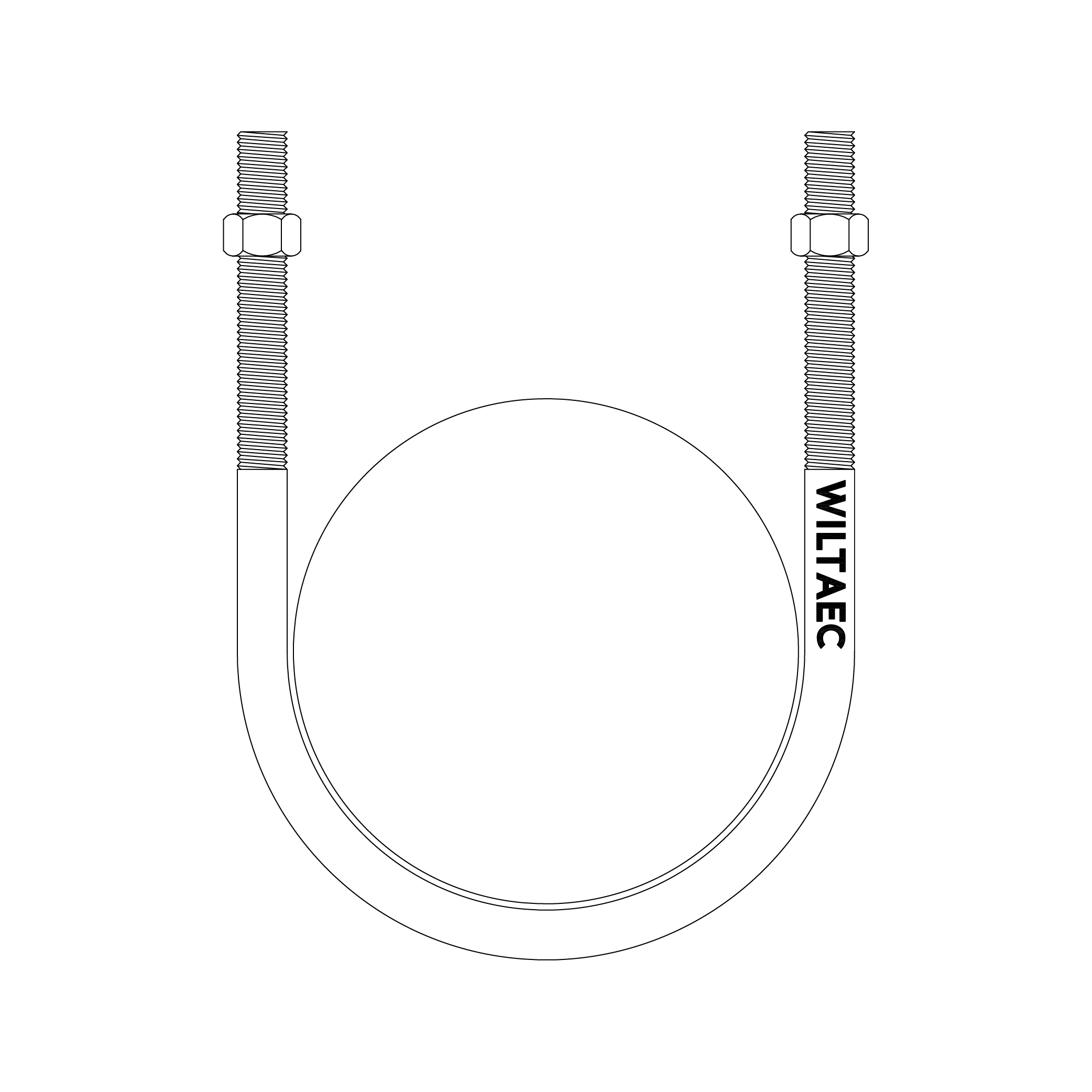

Standard U – BOLT - Image 2

Standard U – BOLT - Image 3

Standard U – BOLT

Size Range: ½ ‘’ through 36’’

Material : Carbon Steel acc. to MSS SP 58-TABLE A2/A2M

Finish :

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Approvals:

Complies with Manufacturer’s Standardization Society

MSS SP-58 & MSS SP-69 – Type 24

Description
Additional Specs

Description

Designed as a support, guide or anchor of pipe. Supplied with two nuts.

EPDM Rubber Lining can be supplied separately upon request.

Extra nuts can be supplied separately upon request.

Additional Specs

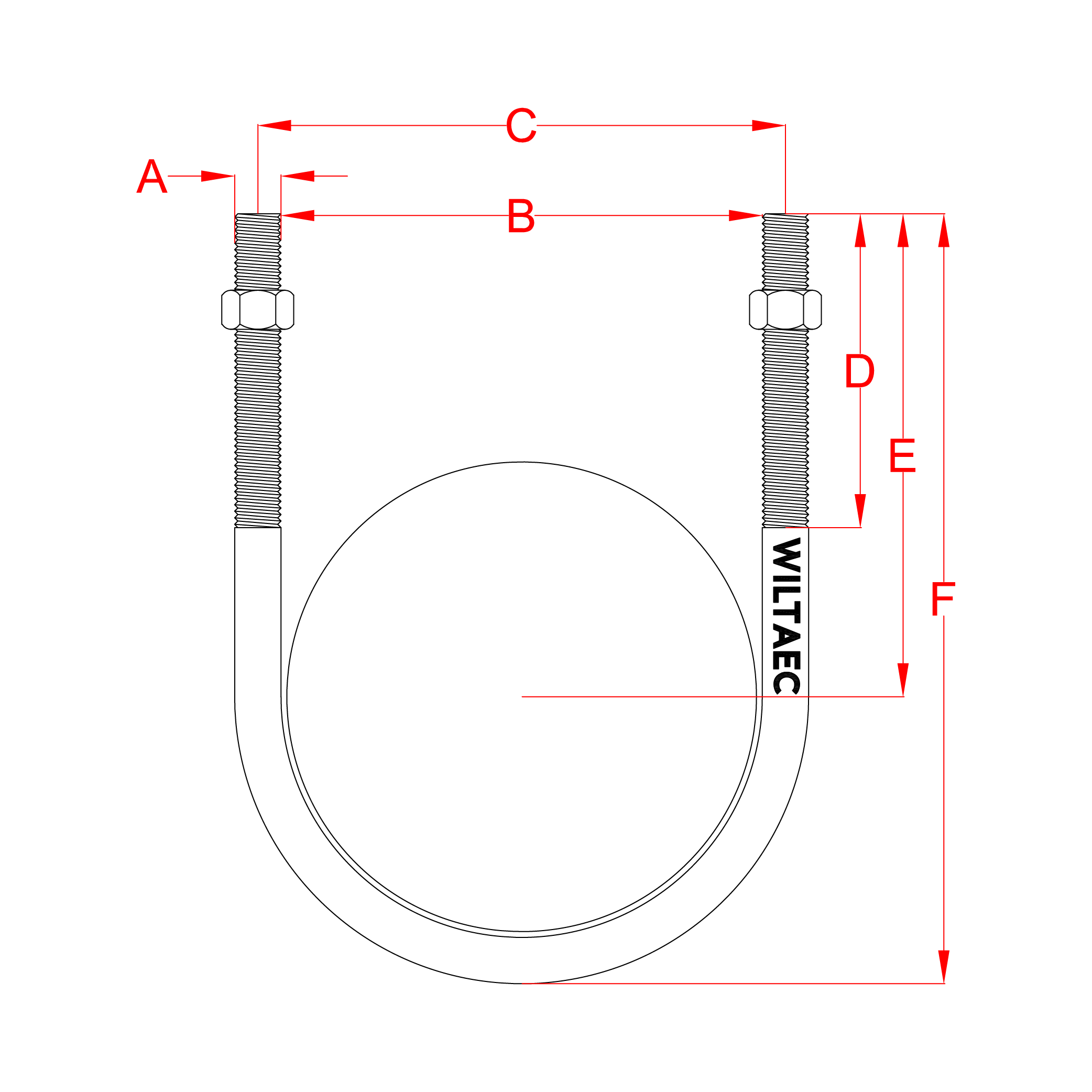

Part No.	Size		A	B	C	D	E	F	Max Recom. Load
	Size			B	C	D	E	F	Max Recom. Load
	Inch	DN		[mm]	[mm]	[mm]	[mm]	[mm]	kN
WSUB015	½	15	M6	23	29	30	32.5	50	2.2
WSUB020	¾	20	M6	30	36	30	39	60	2.2
WSUB025	1	25	M6	36	42	40	46	70	2.2
WSUB032	1 ¼	32	M6	46	52	40	51	80	2.2
WSUB040	1 ½	40	M8	52	60	40	56	90	4.0
WSUB050	2	50	M8	64	72	40	60	100	4.0
WSUB065	2 ½	65	M8	74	82	50	75	120	4.0
WSUB080	3	80	M10	94	104	55	83	140	5.4
WSUB090	3 ½	90	M10	106	116	60	87	150	5.4
WSUB100	4	100	M10	118	128	60	96	165	5.4
WSUB125	5	125	M12	146	158	70	115	200	10.0
WSUB150	6	150	M12	176	188	70	130	230	10.0
WSUB200	8	200	M12	224	236	70	151	275	10.0
WSUB250	10	250	M16	278	294	90	195	350	16.3
WSUB300	12	300	M16	329	345	90	219	400	16.3
WSUB350	14	350	M16	360	376	90	234	430	16.3
WSUB400	16	400	M16	415	431	90	262	485	16.3
WSUB450	18	450	M20	464	484	110	293	545	24.5
WSUB500	20	500	M20	515	535	110	318	595	24.5
WSUB600	24	600	M24	615	639	130	384	715	44.5
WSUB750	30	750	M24	767.5	792	140	462	870	44.5
WSUB900	36	900	M24	920	944	140	536	1020	44.5
