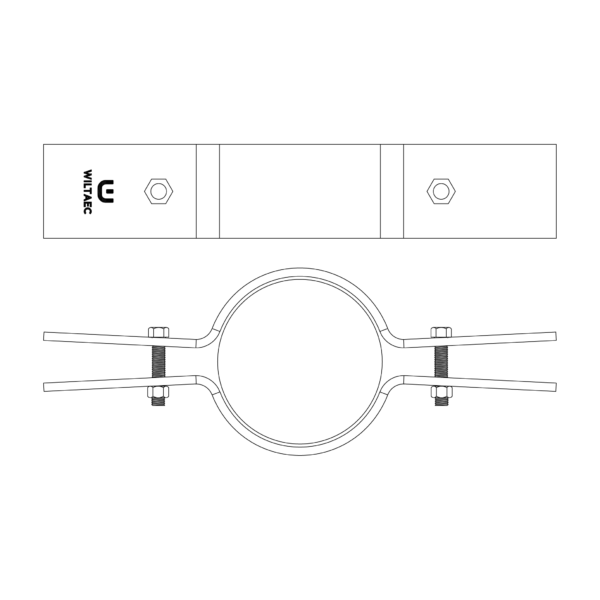

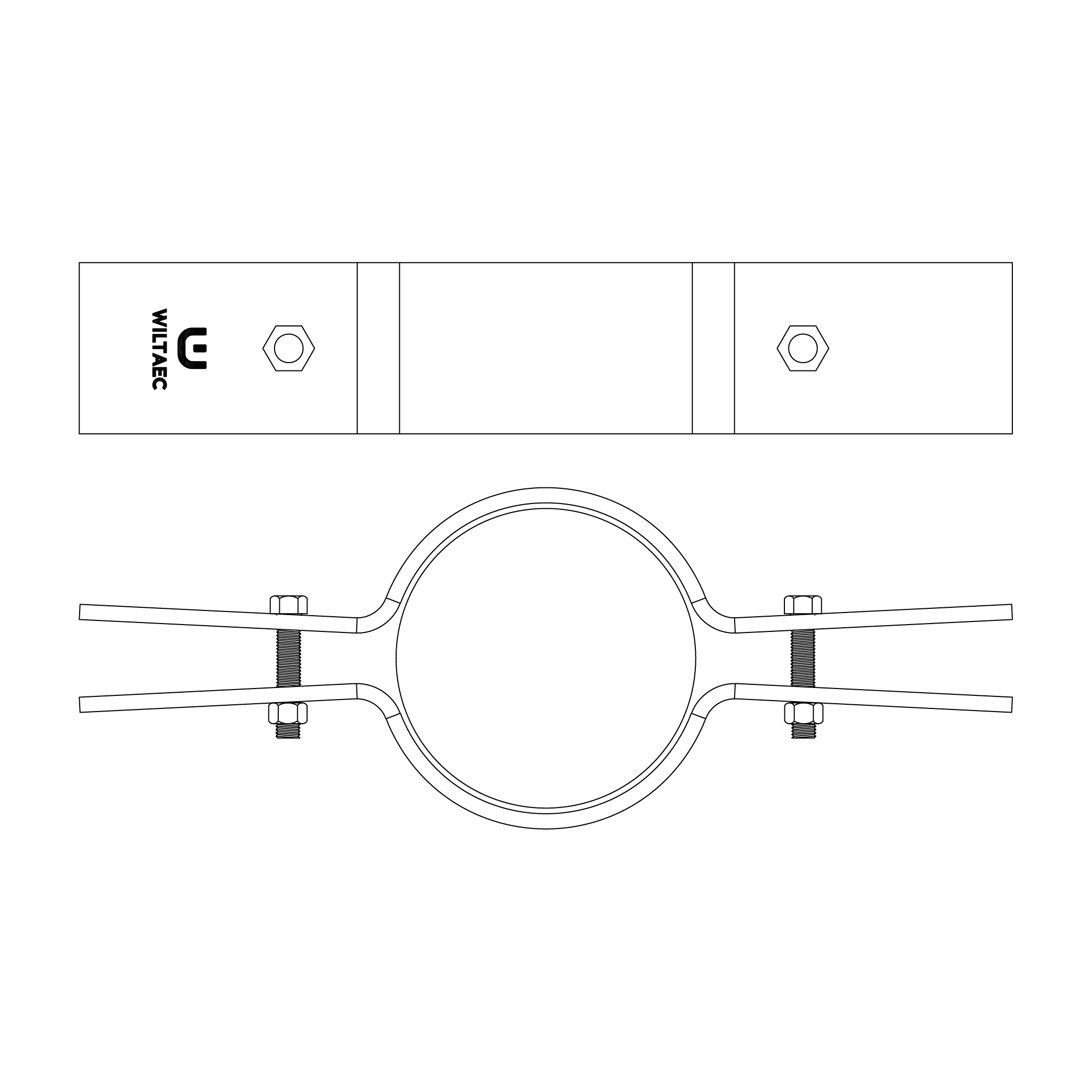

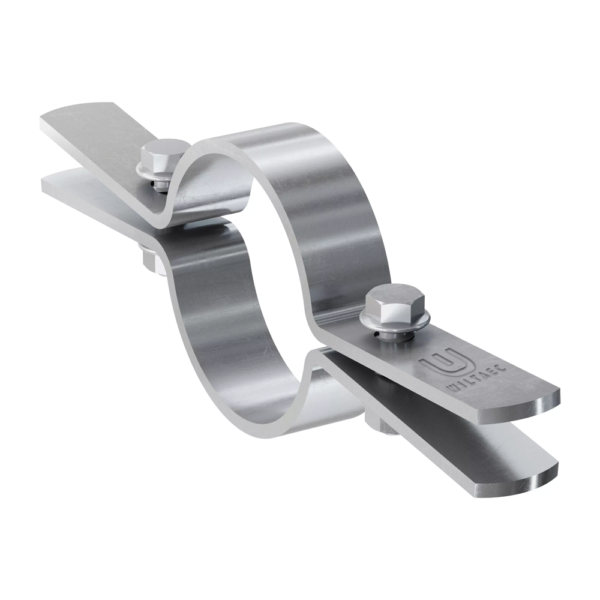

Standard Riser Clamp

Size Range: ½ ‘’ through 30’’

Material: Carbon Steel acc. to MSS SP 58-TABLE A2/A2M

Finish:

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Approvals:

Complies with Manufacturer’s Standardization Society

MSS SP-58 & MSS SP-69 – Type 8

Description
Additional Specs

Description

Designed to support or hold the vertical pipe runs. The load is transmitted to the structure by the ears on each side. Clamp is fitted and bolted preferably below a coupling or welded lugs on steel pipe. Clamp is designed for standard steel pipe O.D.

Note: EPDM Rubber Lining can be supplied separately upon request.

Additional Specs

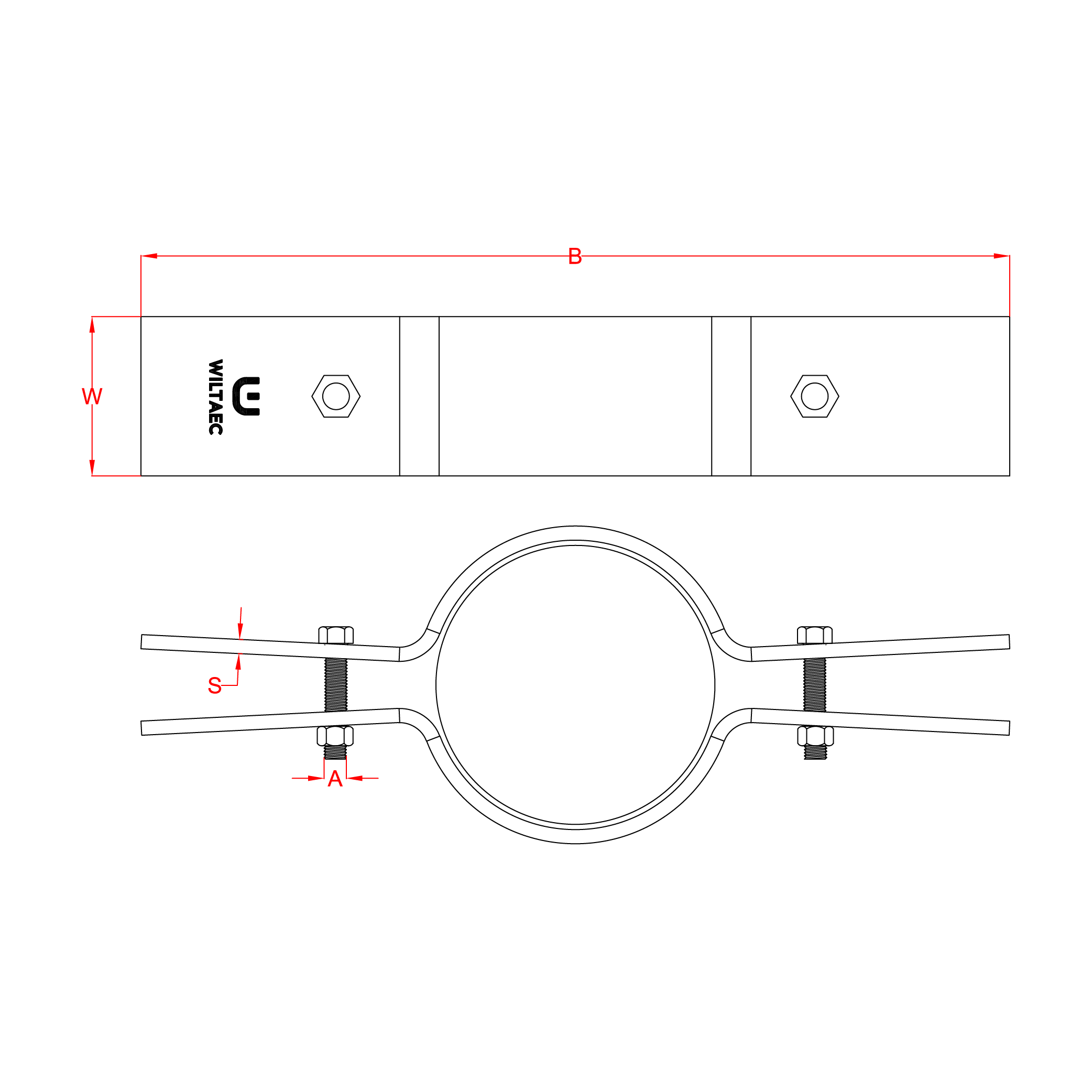

Part No.	Size		Size of Steel		A	B	Max Recom. Load
	Size		Size of Steel			B	Max Recom. Load
	Inch	DN	S [mm]	W [mm]		[mm]	kN
WRC015	½	15	5	30	M10	222	1.0
WRC020	¾	20	5	30	M10	226	1.0
WRC025	1	25	5	30	M10	234	1.0
WRC032	1 ¼	32	6	30	M12	242	1.0
WRC040	1 ½	40	6	30	M12	248	1.0
WRC050	2	50	6	30	M12	260	1.0
WRC065	2 ½	65	6	30	M12	276	1.7
WRC080	3	80	6	30	M12	288	2.3
WRC090	3 ½	90	6	40	M12	332	3.0
WRC100	4	100	6	40	M12	344	3.5
WRC125	5	125	6	50	M12	369	5.0
WRC150	6	150	6	50	M12	398	7.0
WRC200	8	200	8	50	M16	480	11.0
WRC250	10	250	8	50	M16	533	11.0
WRC300	12	300	12	60	M16	584	12.0
WRC350	14	350	12	60	M16	616	12.0
WRC400	16	400	16	60	M20	667	13.0
WRC450	18	450	16	60	M20	717	13.0
WRC500	20	500	16	60	M20	769	13.0
WRC600	24	600	16	75	M20	870	13.0
WRC750	30	750	16	75	M20	1023	13.0

Standard Riser Clamp
