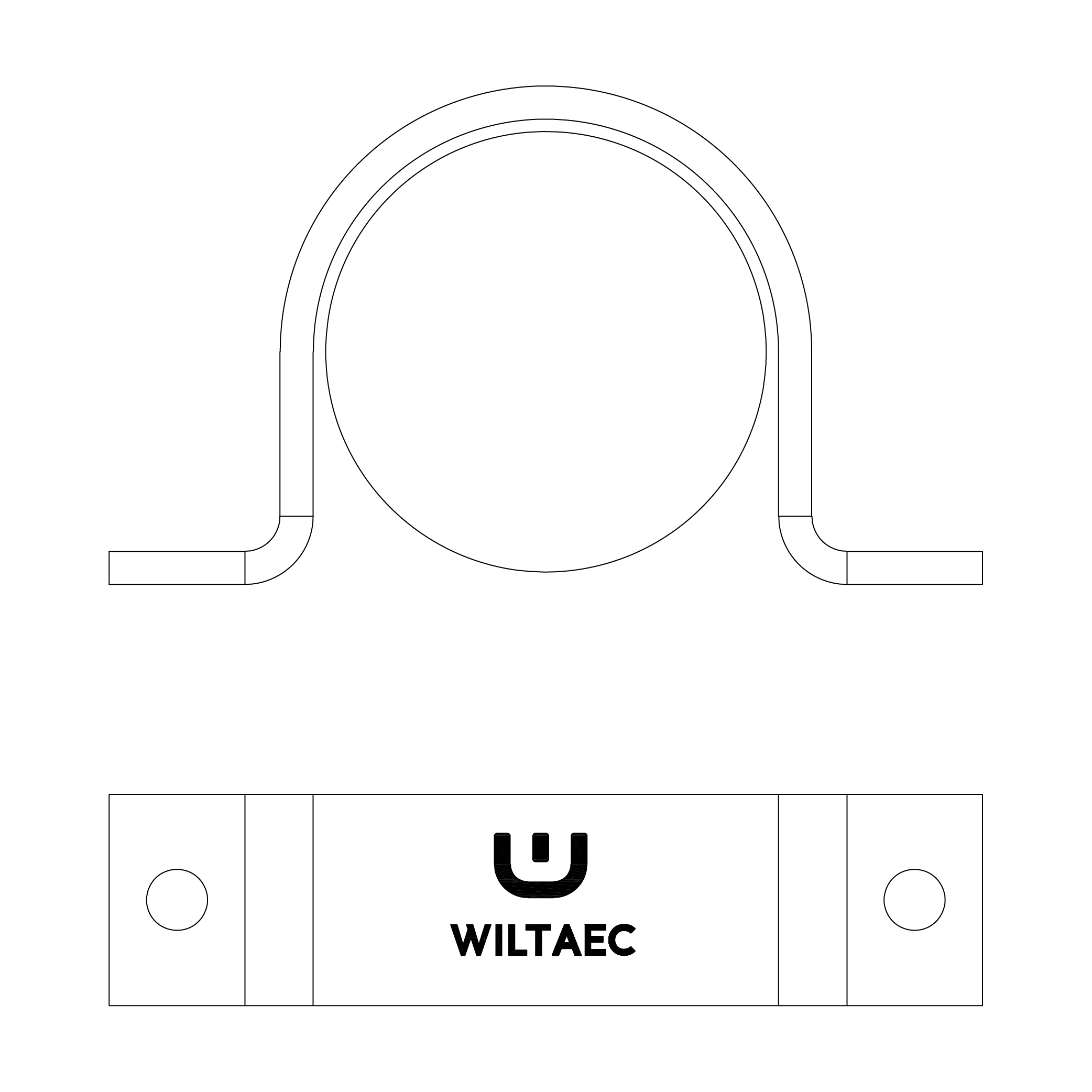

Standard Pipe Strap

Size Range: ½ ‘’ through 12’’

Material : Carbon Steel acc. to MSS SP 58-TABLE A2/A2M

Finish :

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Approvals:

Complies with Manufacturer’s Standardization Society

MSS SP-58 & MSS SP-69 – Type 26

Description
Additional Specs

Description

Designed for supporting pipe runs from walls or ceilings with framing channels. The Strap is designed as an economical product for pipes not subject to expansion or contraction

EPDM Rubber Lining can be supplied separately upon request.

Additional Specs

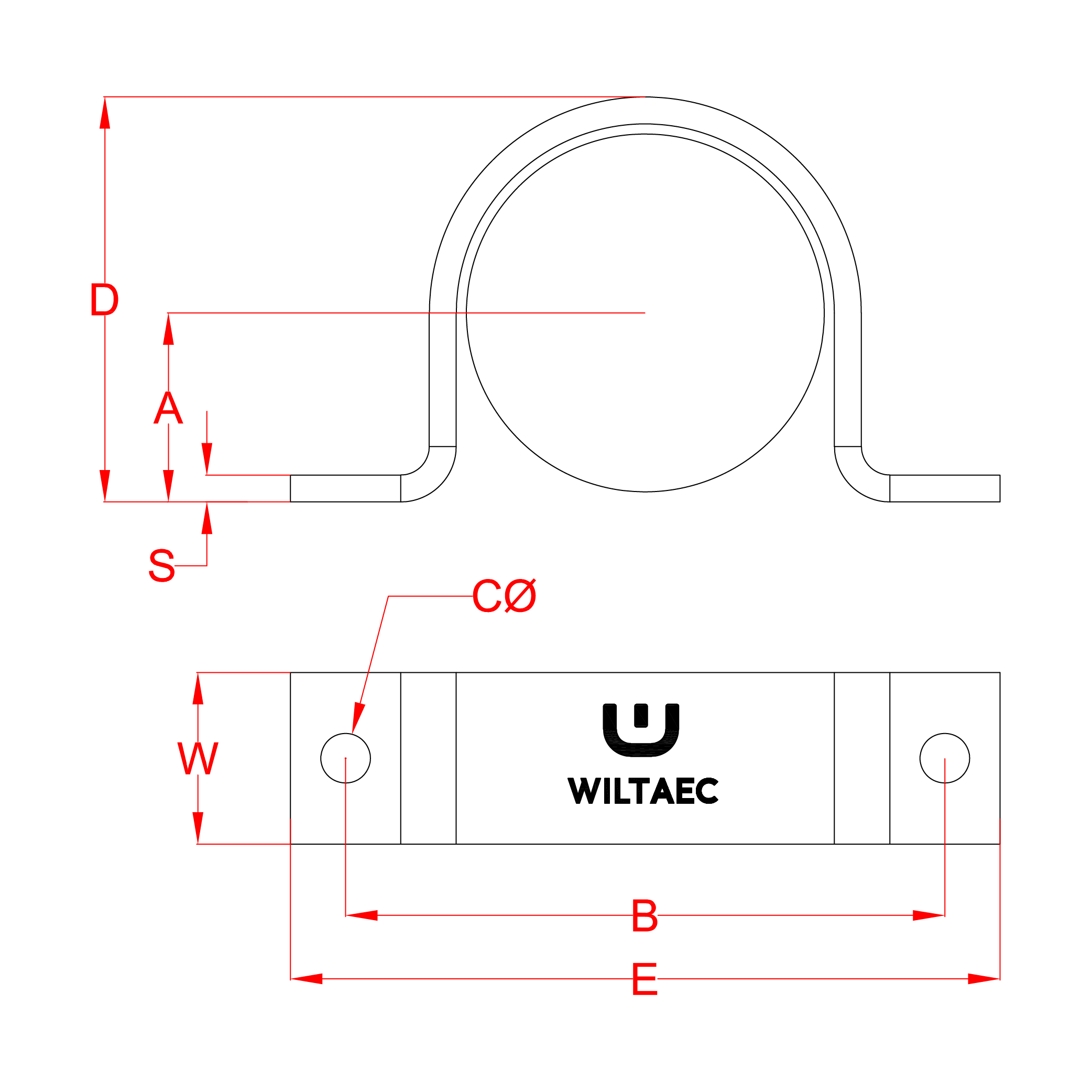

Part No.	Size		Size of Steel		A	B	C	D	E	Max Recom. Load	Weight per 100 pcs
	Size		Size of Steel		A	B	C	D	E	Max Recom. Load	Weight per 100 pcs
	Inch	DN	S [mm]	W [mm]	[mm]	[mm]	[mm]	[mm]	[mm]	kN	kg
WSPS015	½	15	3	40	70	56	8	22	80	1.8	9.3
WSPS020	¾	20	3	40	9.5	62	8	27.5	86	1.8	10.6
WSPS025	1	25	3	40	13	68	8	34	92	1.8	12.2
WSPS032	1 ¼	32	3	40	17.5	77	8	43	101	1.8	14.3
WSPS040	1 ½	40	3	40	20.5	83	8	49	107	1.8	15.8
WSPS050	2	50	6	40	26.5	112	10	64	142	1.8	40.3
WSPS065	2 ½	65	6	40	34	128	10	79.5	158	2.7	48
WSPS080	3	80	6	40	41	140	10	92.5	170	2.7	54
WSPS090	3 ½	90	6	40	47	153	10	105	183	2.7	60.2
WSPS100	4	100	6	40	53.5	171	12	118	207	3.2	68
WSPS125	5	125	6	40	66	196	12	143	232	3.2	80.2
WSPS150	6	150	6	40	81	224	12	172	260	3.2	93.9
WSPS200	8	200	6	40	106	275	12	222.5	311	4	118.4
WSPS250	10	250	6	40	132.5	330	12	276.5	366	4.5	144.5
WSPS300	12	300	6	40	158.5	380	12	327.5	416	4.5	168.8

Standard Pipe Strap
