Standard offset Clamp

Standard offset Clamp

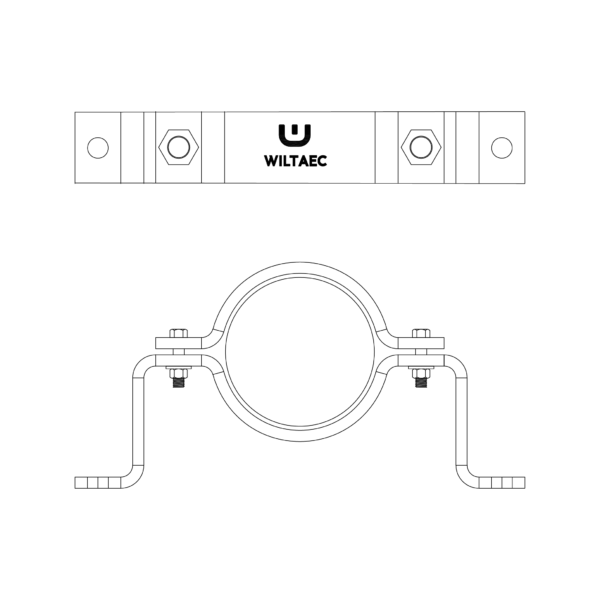

Standard offset Clamp - Image 2

Standard offset Clamp - Image 3

Standard offset Clamp

Size Range: ½ ‘’ through 12’’

Material: Carbon Steel acc. to MSS SP 58-TABLE A2/A2M

Finish:

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Description
Additional Specs

Description

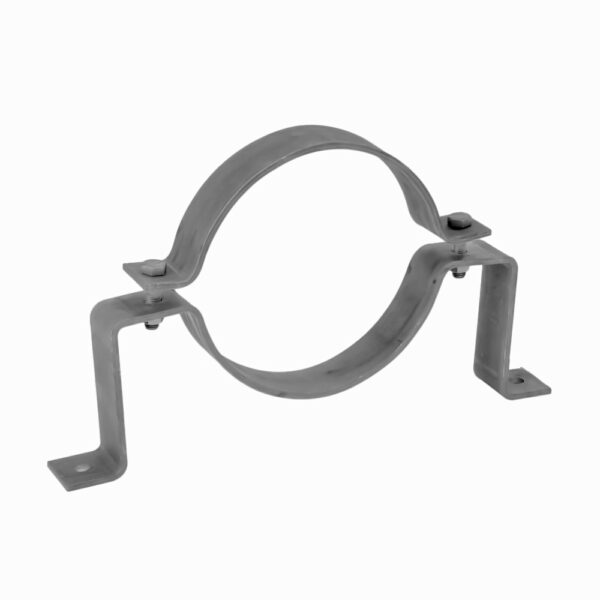

This offset pipe clamp is designed for supporting horizontal or vertical pipelines. The clamp can be fixed directly to walls and floors using the two pre drilled fixing holes at the feet.

EPDM Rubber Lining can be supplied separately upon request.

Additional Specs

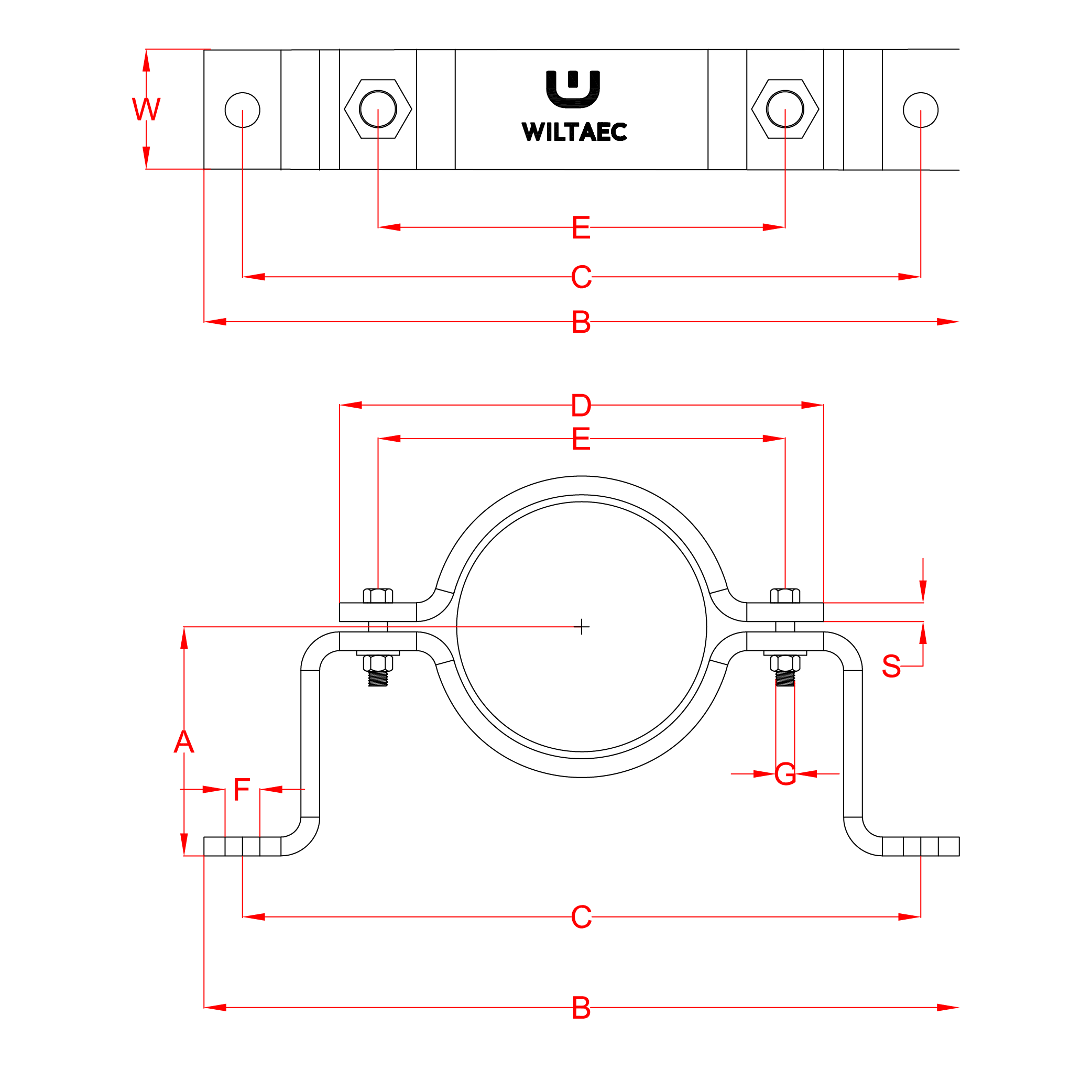

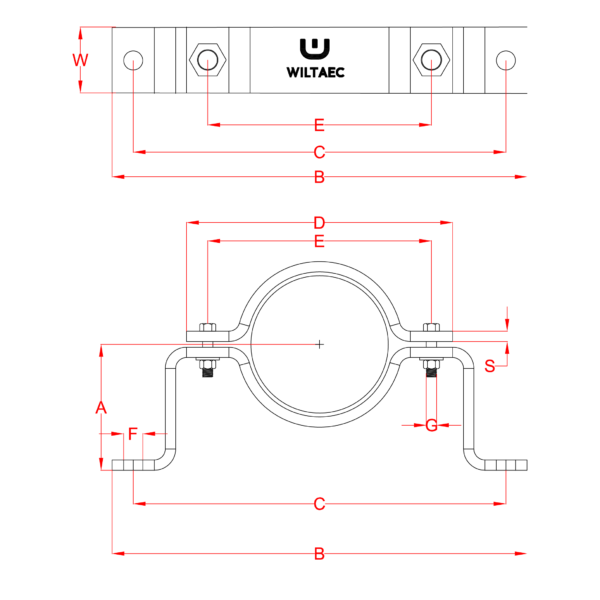

Part No.	Size			Size of Steel		A	B	C	D	E	F	G	Max Recom. Load
Part No.	Inch	DN	OD [mm]	S	W	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	kN
WSOC 015	½	15	21.3	5	30	62	178	150	100	75	12	M10	0.9
WSOC 020	¾	20	26.9	5	30	63	178	150	100	75	12	M10	0.9
WSOC 025	1	25	33.7	5	30	66	187	160	105	80	12	M10	0.9
WSOC 032	1 ¼	32	42.4	6	30	69	197	170	110	85	12	M10	0.9
WSOC 040	1 ½	40	48.3	6	30	76	197	170	110	85	12	M10	0.9
WSOC 050	2	50	56	6	30	81	220	190	120	95	12	M10	1.9
WSOC 065	2 ½	65	76.1	6	30	87	250	220	145	120	12	M10	1.9
WSOC 080	3	80	88.9	6	30	95	280	240	190	165	12	M10	1.9
WSOC 090	3 ½	90	101.6	6	40	101	290	250	200	175	12	M10	1.9
WSOC 100	4	100	114.3	6	40	108	320	280	230	198	14	M12	2.7
WSOC 125	5	125	139.7	6	50	120	350	310	256	225	14	M12	2.7
WSOC 150	6	150	168.3	6	50	135	400	360	296	260	14	M12	3.8
WSOC 200	8	200	219.1	8	50	160	480	420	355	310	14	M12	3.8
WSOC 250	10	250	273.0	8	50	190	580	520	430	390	18	M16	4
