A standard angle refers to a geometric shape that has two sides of equal length, forming a right angle. also known as angle irons or L-shaped metal bars, are versatile structural components made from steel. They have two perpendicular legs that form a 90-degree angle. Steel angles find a wide range of applications in various industries due to their strength, rigidity, and versatility.

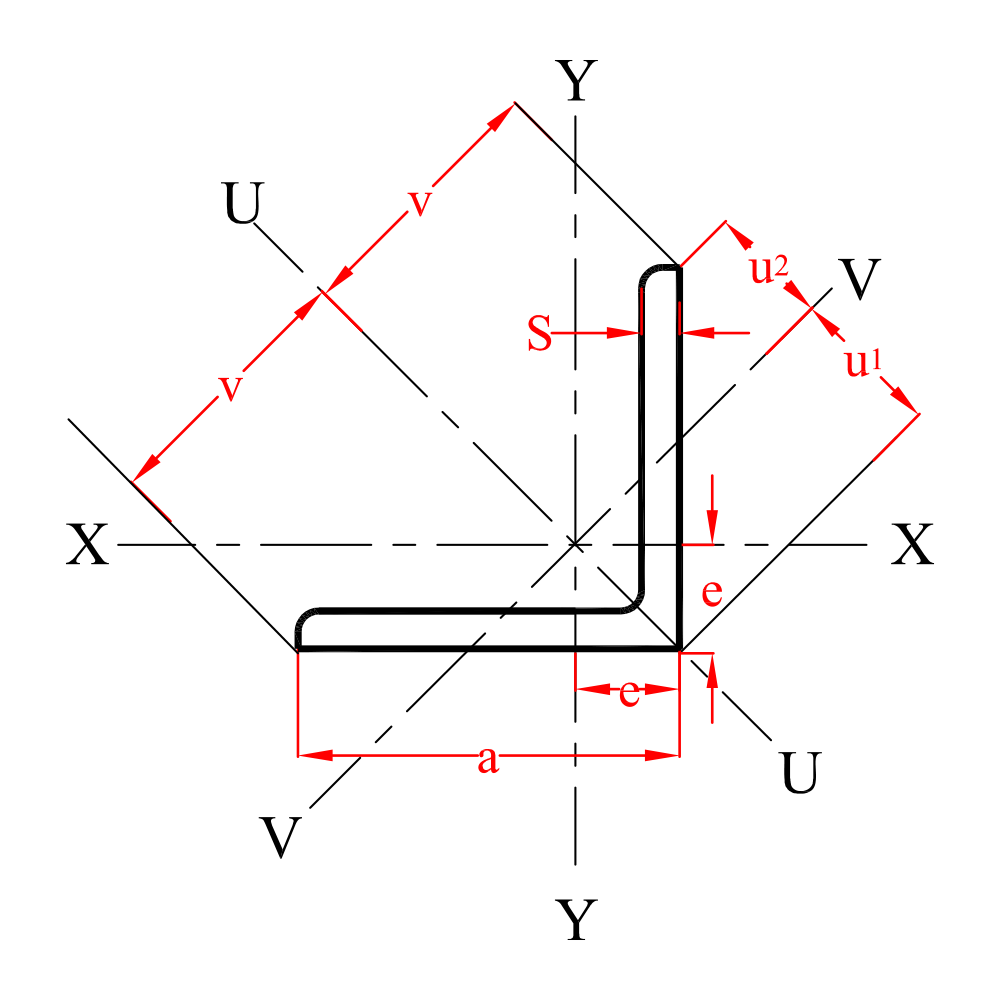

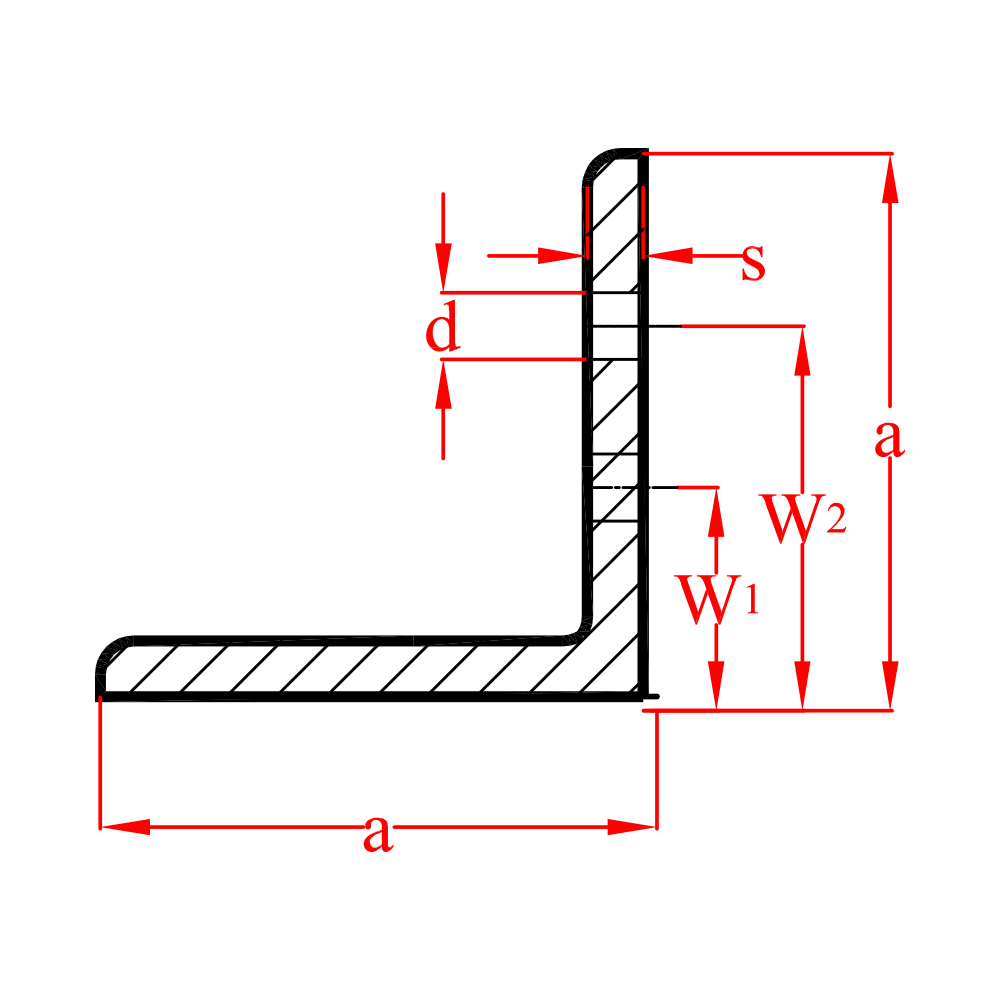

| Size | Weight | Area | Dimensions | Details | Surface Area | |||||||
| a | s | e | v | u1 | u2 | w1 | w2 | dmax | Um | Ut | ||
| mm | mm | kg/m` | cm2 | cm | cm | cm | cm | mm | mm | mm | x10-2 m2/m | m2/t |
| 30 | 3 | 1.36 | 1.74 | 0.84 | 2.12 | 1.18 | 1.04 | N.A. | 11.60 | 85.30 | ||
| 4 | 1.78 | 2.27 | 0.89 | 1.24 | 1.05 | 11.60 | 65.17 | |||||
| 5 | 2.18 | 2.78 | 0.92 | 1.30 | 1.07 | 11.60 | 53.21 | |||||
| 35 | 3 | 1.60 | 2.04 | 0.96 | 2.47 | 1.36 | 1.23 | 20 | N.A. | M10 | 13.60 | 85.00 |
| 4 | 2.10 | 2.67 | 1.00 | 1.41 | 1.24 | 20 | M10 | 13.60 | 64.76 | |||
| 5 | 2.57 | 3.28 | 1.04 | 1.47 | 1.25 | 20 | M10 | 13.60 | 52.91 | |||
| 40 | 4 | 2.42 | 3.08 | 1.12 | 2.83 | 1.58 | 1.40 | 22 | N.A. | M10 | 15.50 | 64.00 |
| 5 | 2.97 | 3.79 | 1.16 | 1.64 | 1.42 | 22 | M10 | 15.50 | 52.20 | |||
| 6 | 3.52 | 4.48 | 1.20 | 1.70 | 1.43 | 22 | M10 | 15.50 | 44.03 | |||
| 45 | 5 | 3.38 | 4.30 | 1.28 | 3.18 | 1.81 | 1.58 | 25 | N.A. | M12 | 17.40 | 51.50 |
| 6 | 4.00 | 5.09 | 1.32 | 1.87 | 1.59 | 25 | M12 | 17.40 | 43.50 | |||
| 7 | 4.60 | 5.86 | 1.36 | 1.92 | 1.61 | 25 | M12 | 17.40 | 37.82 | |||
| 50 | 5 | 3.77 | 4.80 | 1.40 | 3.54 | 1.98 | 1.76 | 30 | N.A. | M12 | 19.40 | 51.50 |
| 6 | 4.47 | 5.69 | 1.45 | 2.04 | 1.77 | 30 | M12 | 19.40 | 43.40 | |||
| 7 | 5.15 | 6.56 | 1.49 | 2.11 | 1.78 | 30 | M12 | 19.40 | 37.67 | |||
| 55 | 5 | 4.18 | 5.32 | 1.52 | 3.89 | 2.15 | 1.93 | 30 | N.A. | M16 | 21.30 | 50.96 |
| 6 | 4.95 | 6.31 | 1.56 | 2.21 | 1.94 | 30 | M16 | 21.30 | 33.30 | |||
| 8 | 6.46 | 8.23 | 1.64 | 2.32 | 1.97 | 30 | M16 | 21.30 | 32.97 | |||
| 60 | 6 | 5.42 | 6.91 | 1.69 | 4.24 | 2.39 | 2.11 | 35 | N.A. | M16 | 23.30 | 43.00 |
| 8 | 7.09 | 9.03 | 1.77 | 2.50 | 2.14 | 35 | M16 | 23.30 | 32.90 | |||
| 10 | 8.69 | 11.10 | 1.85 | 2.62 | 2.17 | 35 | M16 | 23.30 | 26.80 | |||
| 65 | 7 | 6.83 | 8.70 | 1.85 | 4.60 | 2.62 | 2.29 | 35 | N.A. | M16 | 25.20 | 36.90 |
| 8 | 7.73 | 9.85 | 1.89 | 2.67 | 2.31 | 35 | M16 | 25.20 | 32.60 | |||
| 9 | 8.62 | 11.00 | 1.93 | 2.73 | 2.32 | 35 | M16 | 25.20 | 29.23 | |||
