Description
Used for providing support for EMT (Electrical Metal Tube ) conduit where higher load bearing supports are desired as required by the National Electrical Code (NEC)
Call Us 24/7
+20 103 043 0033Send Us Mail
info@wiltaec.comOur Location
Industrial Zone , Badr City , Cairo . Egypt Standard EMT Strap

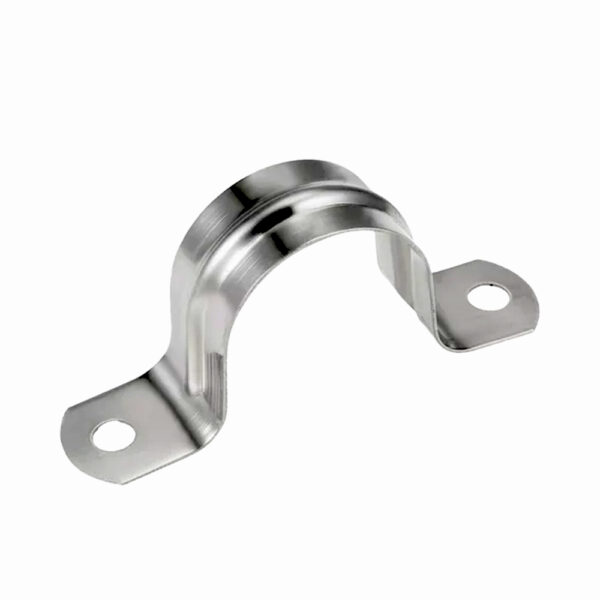

Standard EMT Strap
Size Range: ½ ‘’ through 2’’
Material: Carbon Steel acc. to MSS SP 58-TABLE A2/A2M
Finish:
Electro-Galvanization acc. to
• ASTM B 633/ASTM F 1941
• EN ISO 2081/EN ISO 4042
Hot Dipped Galvanized (HDG) acc. to
• ASTM A153/153M
• ASTM A123/123M
• EN ISO 1461/EN ISO 10684
NEC/CEC Certifications and Compliances
• TH-1901 through TH-1905
• UL Standard: 2239
• CSA Standard: C22.2 18.4
Technical Specs
Additional Specs

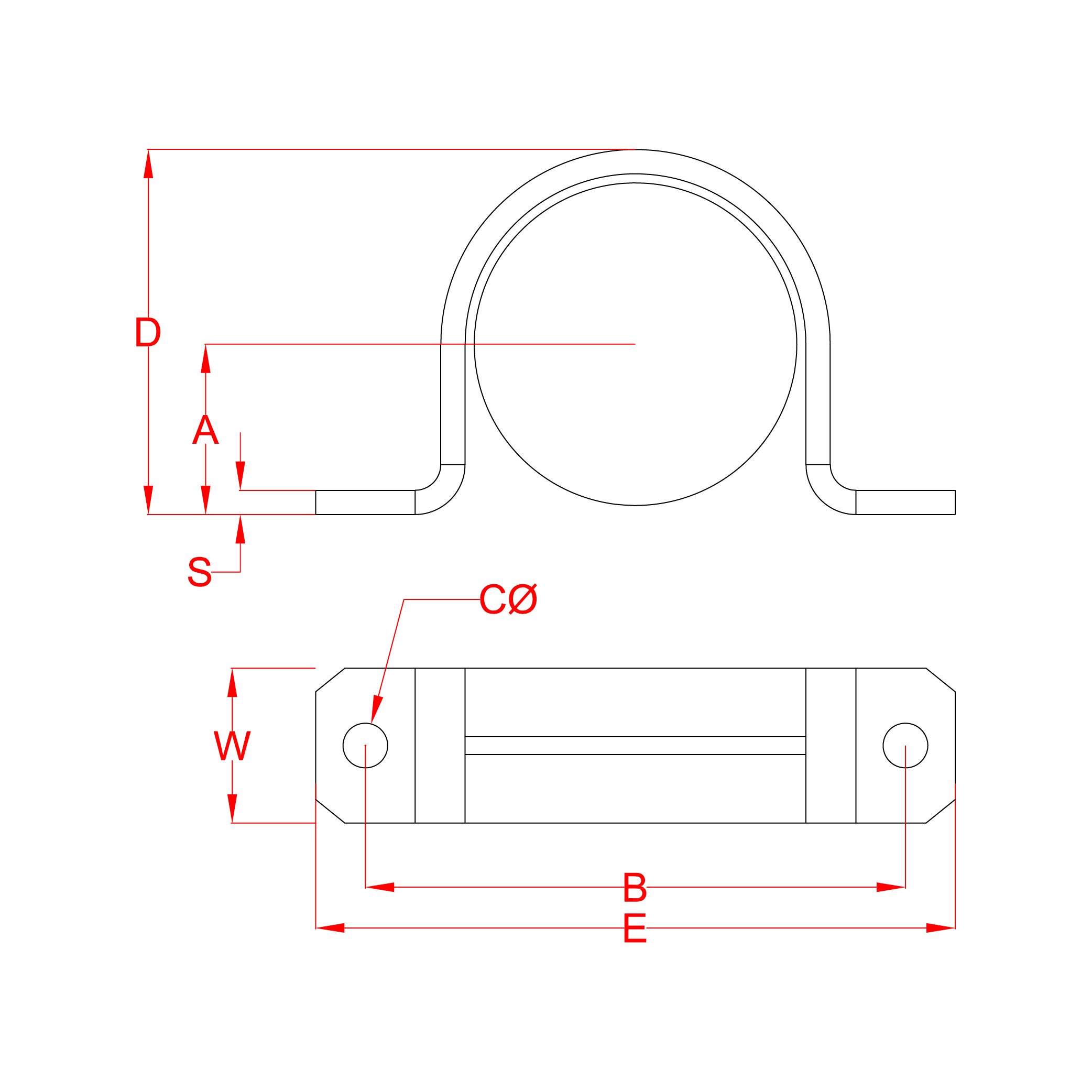

| Part No. | Size | Size of Steel | A | B | C | D | E | |||
| Inch | DN | OD [mm] | S | W | [mm] | [mm] | [mm] | [mm] | [mm] | |
| WSES 015 | ½ | 15 | 21.3 | 0.7 | 14 | 8 | 40 | 5 | 17.5 | 54 |
| WSES 020 | ¾ | 20 | 26.9 | 0.7 | 16 | 10.25 | 52 | 5 | 22.5 | 72 |
| WSES 025 | 1 | 25 | 33.7 | 1.0 | 16 | 13 | 60 | 6 | 28 | 76 |
| WSES 032 | 1 ¼ | 32 | 42.4 | 1.0 | 18 | 17.5 | 75.5 | 6 | 37 | 95 |
| WSES 040 | 1 ½ | 40 | 48.3 | 1.0 | 22 | 20.25 | 87.5 | 6 | 42.5 | 107.5 |
| WSES 050 | 2 | 50 | 56 | 1.0 | 24 | 26.15 | 100 | 8 | 54.3 | 120 |
