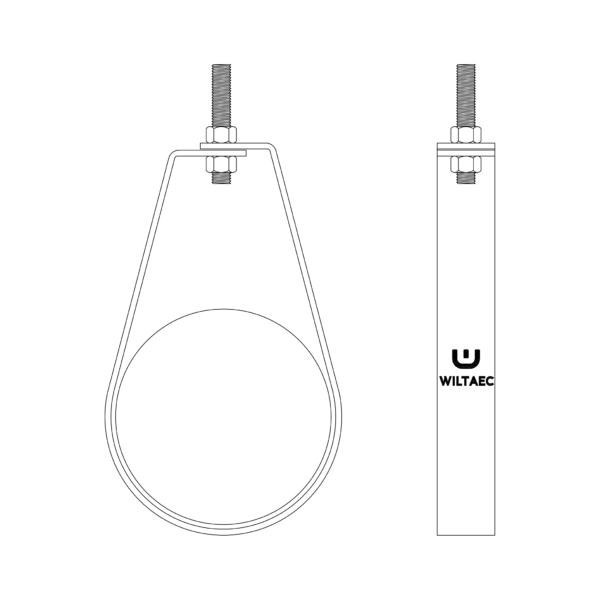

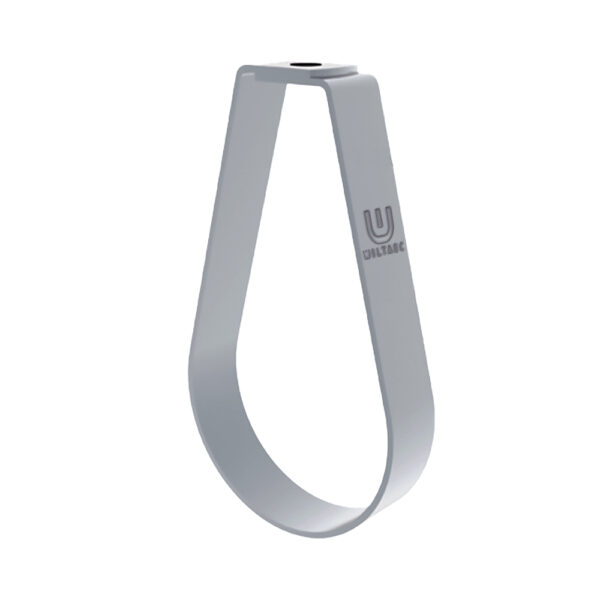

Standard Band Hanger

Size Range: ¾ ‘’ through 10’’

Material: Carbon Steel acc. to MSS SP 58-TABLE A2/A2M

Finish:

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Approvals:

Complies with Manufacturer’s Standardization Society

MSS SP-58 & MSS SP-69 – Type 7

Complies with NFPA-13 Standard for the Installation of Sprinkler Systems.

Description
Additional Specs

Description

Designed to suspend non-insulated stationary pipes. Vertical adjustments are possible once the pipe is in place. Design and design loads are complied with NFPA standards. Suitable for using fire protection lines. The clamp should only be used for horizontal pipe hanging. it should not be exposed to lateral loads during installation and service phases.

EPDM Rubber Lining can be supplied separately upon request.

Additional Specs

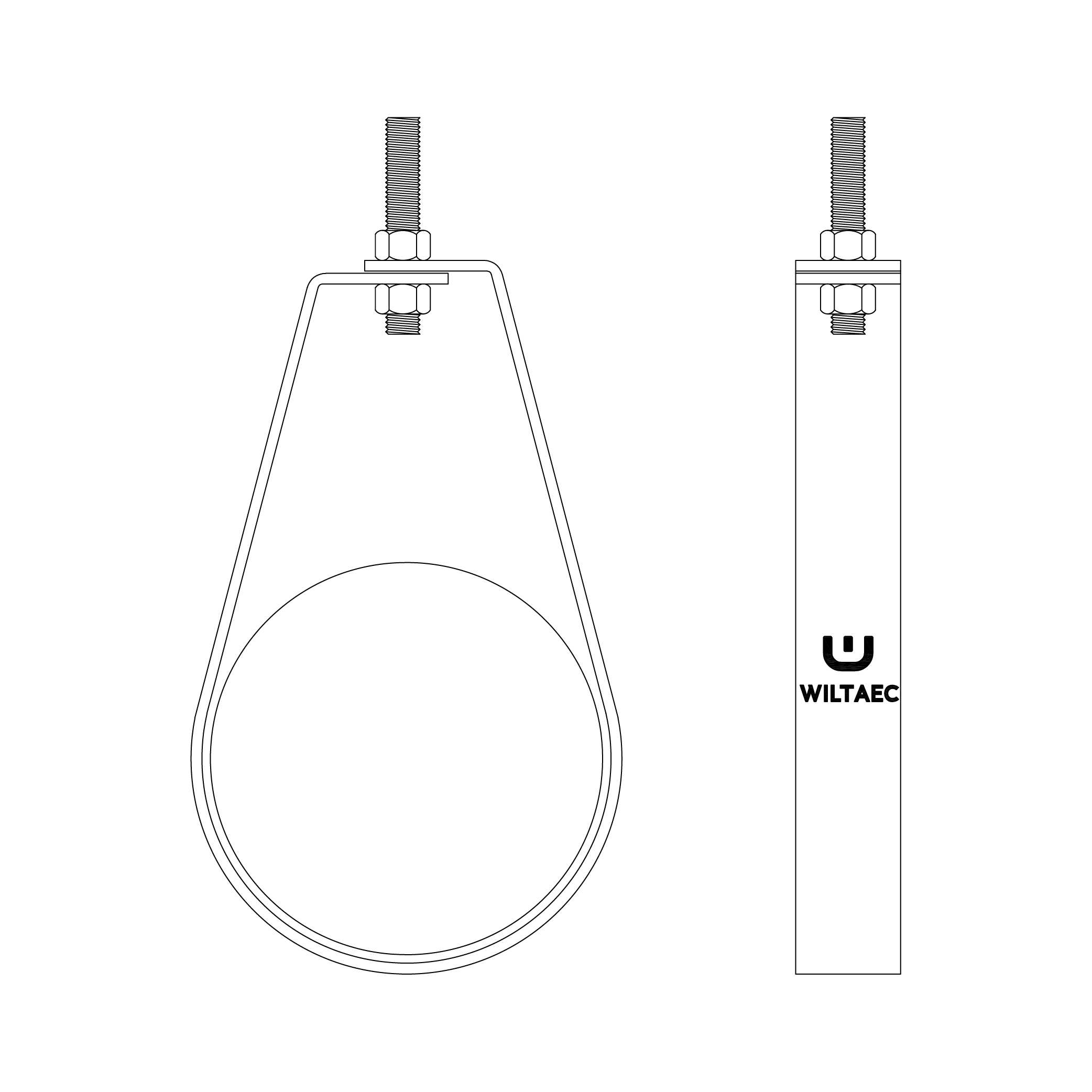

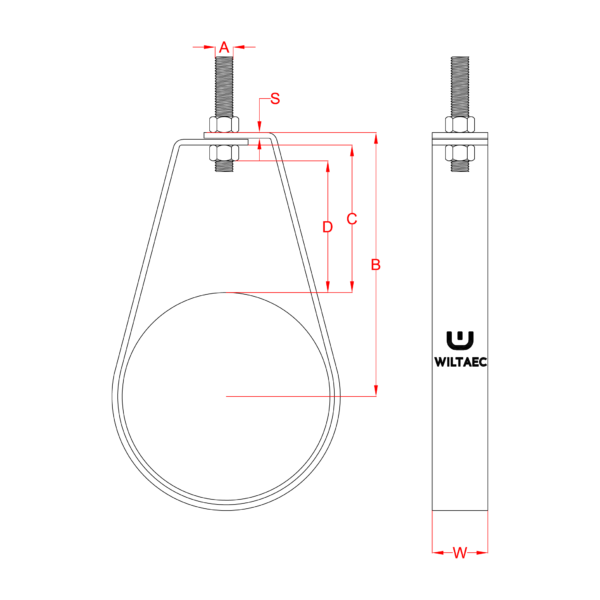

Part No.	Size		Size of Steel		A	B	C	D	Max Recom. Load
	Size		Size of Steel			B	C	D	Max Recom. Load
	Inch	DN	S	W		[mm]	[mm]	[mm]	kN
WSBH020	¾	20	1.5	25	M10	54.5	36.5	28.5	1.7
WSBH025	1	25	1.5	25	M10	63.5	42.5	34.5	1.7
WSBH032	1 ¼	32	1.5	25	M10	70.5	44.5	36.5	1.7
WSBH040	1 ½	40	1.5	25	M10	75.5	46.5	38.5	1.7
WSBH050	2	50	1.5	25	M10	83.5	47.5	39.5	1.7
WSBH065	2 ½	65	2.5	25	M10	100.5	56.5	48.5	2.6
WSBH080	3	80	2.5	25	M10	117.5	66.5	58.5	2.6
WSBH100	4	100	2.5	25	M10	143.5	80.5	72.5	4.4
WSBH125	5	125	3	40	M12	175.0	98.0	88.0	5.5
WSBH150	6	150	3	40	M12	196.0	105.0	95.0	5.5
WSBH200	8	200	3	40	M16	262.0	145.0	132.0	5.5
WSBH250	10	250	3	40	M16	357.5	214.0	201.0	5.5

Standard Band Hanger
