Self-Adhesive Vinyl Labels

Thickness: 0.1 mm [100 micron +/- 10%]

Weight: 140 gsm

Temperature Rating: -20 to 70 C

Finish: Matte or Gloss surface

Lamination Protection can be applied up on request.

INK Type: Eco Solvent- Outdoor

Approvals: Complies with ASME A13.1, NEC, IEC 60446

Technical Specs

Description

Marking pipes in industrial, commercial, and institutional facilities can help make a workplace safer and more efficient. When pipes are clearly labeled, fewer accidents involving injuries and damage to property occur.

This pipe marking guide will explain the best practices for creating a visual pipe marking system to increase safety and efficiency in your workplace. Many industries have specific standards for labeling. For example, health care facilities are subject to specific requirements for pipes carrying medical gases, while marine vessels must use special color-coding.

Most facilities, however, should follow the ASME/ANSI A13.1 standard for pipe marking, which requires an employer use labels that state what a pipe contains and what possible hazards are related to that substance.

Color scheme for Mechanical Vinyl identification labels

ITEM TRADE COLOR SCHEME [LEGEND/FIELD]
WSAVM  A-B CHILLED WATER PIPING WHITE LEGEND / GREEN FIELD
WSAVM  C-D-E-F-G FIRE FIGHTING PIPING WHITE LEGEND / RED FIELD
WSAVM   H-I-J-JM-K-L DUCT WORKS WHITE LEGEND / BLUE FIELD
WSAVM   M-N KITCHEN EXHAUST / SMOKE AIR BLACK LEGEND / YELLOW FIELD
WSAVM  O-P-Q-R-S DRAINAGE PIPING WHITE LEGEND / GREEN FIELD
WSAVM   T DOMESTIC WATER SUPPLY WHITE LEGEND / GREEN FIELD

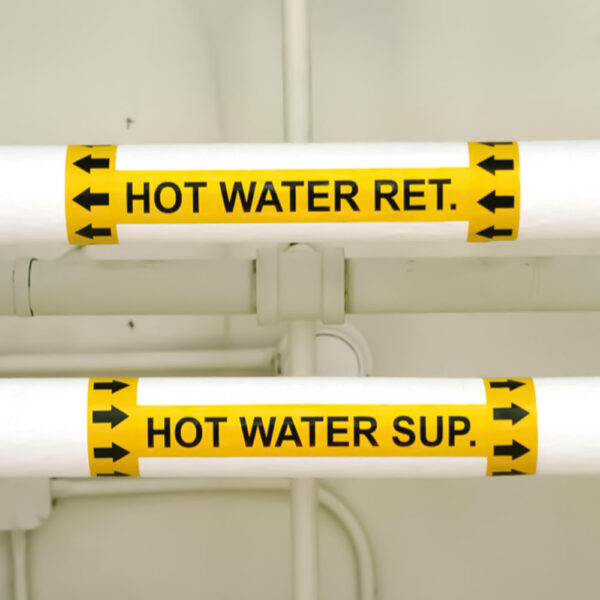

WSAVM   U-V HOT WATER RED LEGEND / YELLOW FIELD
WSAVM   W-X REFRIGERANT, FUEL PIPING BLACK LEGEND / YELLOW FIELD

Color scheme for Electrical Vinyl identification labels

SYMBOL TRADE COLOR SCHEME [LEGEND/FIELD]
WSAVE A POWER CABLE 400V BLACK LEGEND / ORANGE FIELD
WSAVE B POWER CIRUIT 200V BLACK LEGEND / ORANGE FIELD
WSAVE C LIGHTING BLACK LEGEND / ORANGE FIELD
WSAVE D POWER / LIGHTING BLACK LEGEND / ORANGE FIELD

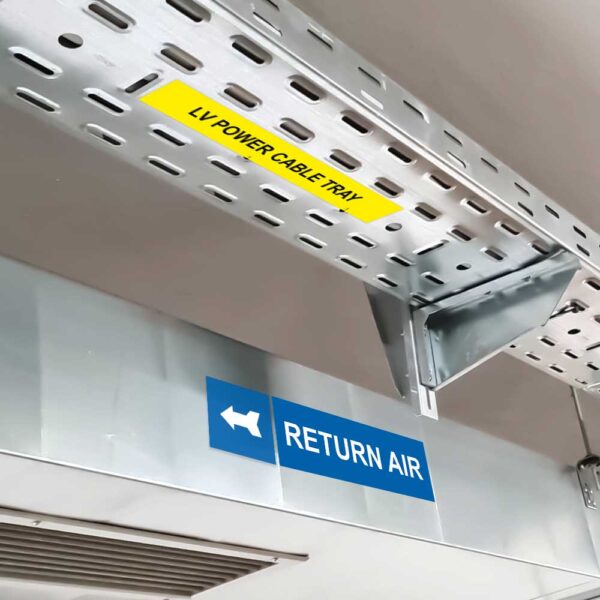

WSAVE E LV POWER BLACK LEGEND / YELLOW FIELD
WSAVE F BMS BLACK LEGEND / YELLOW FIELD

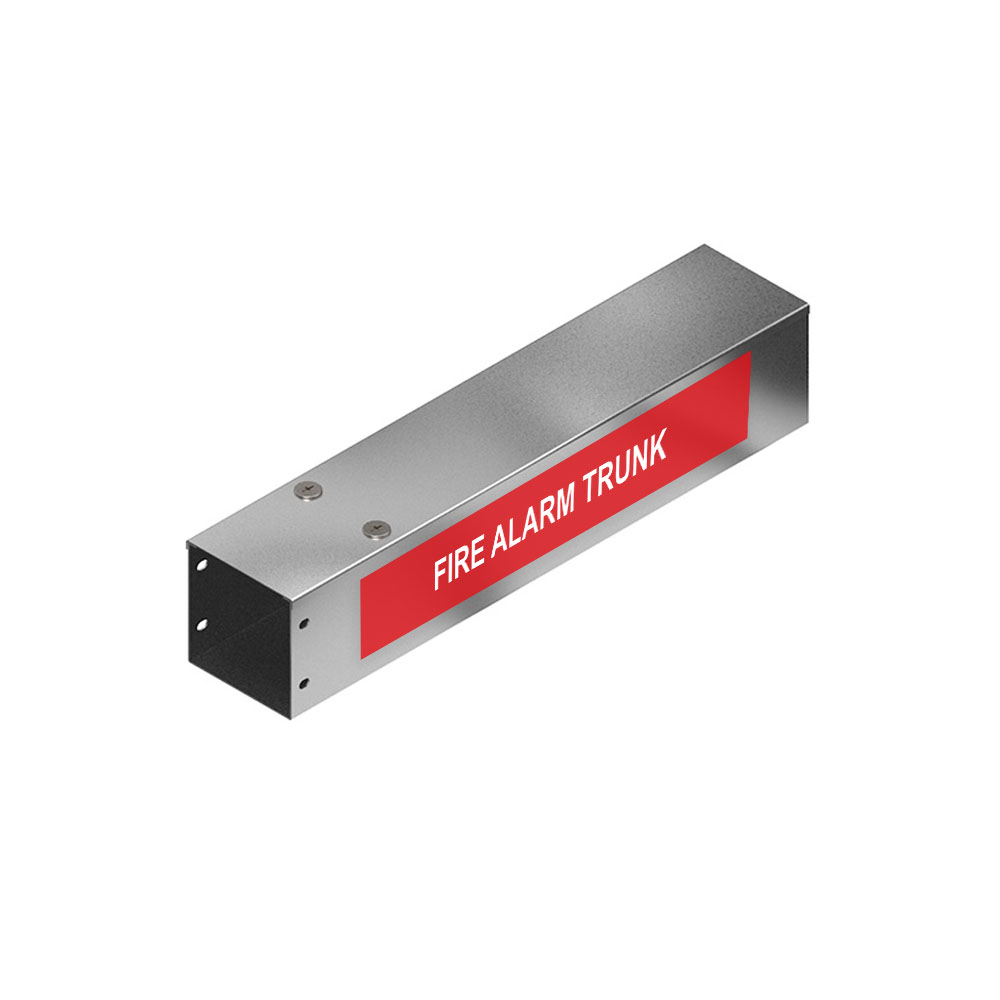

WSAVE G FIRE ALARM WHITE LEGEND / RED FIELD
WSAVE H TELEPHONE WHITE LEGEND / BLUE FIELD
WSAVE I LOW CURRENT WHITE LEGEND / BLUE FIELD
WSAVE J SECURITY SYSTEM WHITE LEGEND / BLUE FIELD
WSAVE K PUBLIC ADDRESS WHITE LEGEND / BLUE FIELD
WSAVE L CCVT WHITE LEGEND / BLUE FIELD
WSAVE M VIDEO INTERCOM YELLOW LEGEND / BLUE FIELD
WSAVE N EMERGENCY LIGHT GREEN LEGEND / WHITE FIELD

Chilled water piping

ITEM NO. TRADE PIPE SIZING OVER ALL O.D FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm

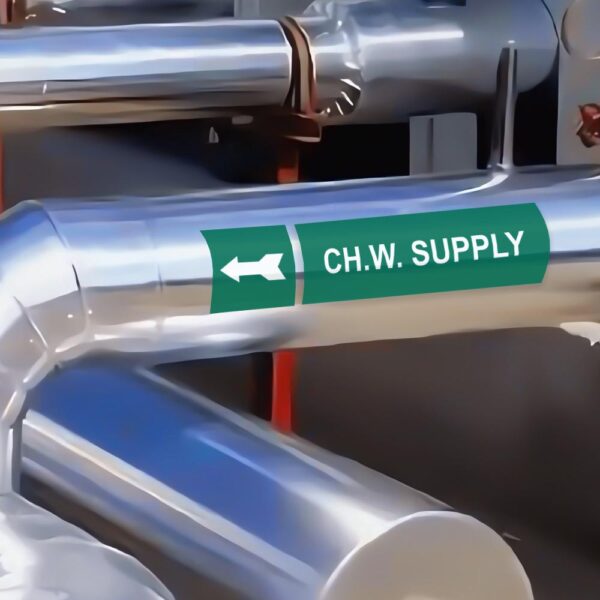

WSAVMA CHILLED WATER SUPPLY (WHITE ON GREEN)
WSAVMA.01 CH.W. SUPPLY 20 120 32 300 100 400 100
WSAVMA.02 CH.W. SUPPLY 25 125 32 300 100 400 100
WSAVMA.03 CH.W. SUPPLY 32 132 32 300 100 400 100
WSAVMA.04 CH.W. SUPPLY 40 140 32 300 100 400 100
WSAVMA.05 CH.W. SUPPLY 50 150 32 300 100 400 100
WSAVMA.06 CH.W. SUPPLY 65 165 64 550 200 750 100
WSAVMA.07 CH.W. SUPPLY 80 180 64 550 200 750 100
WSAVMA.08 CH.W. SUPPLY 100 200 64 550 200 750 150
WSAVMA.09 CH.W. SUPPLY 125 225 64 550 200 750 150
WSAVMA.10 CH.W. SUPPLY 150 250 64 550 200 750 200
WSAVMA.11 CH.W. SUPPLY 200 300 89 850 200 1050 200
WSAVMA.12 CH.W. SUPPLY 250 350 89 850 200 1050 250
WSAVMA.13 CH.W. SUPPLY 300 400 89 850 200 1050 300
WSAVMA.14 CH.W. SUPPLY 350 450 89 850 200 1050 350
WSAVMB CHILLED WATER RETURN (WHITE ON GREEN)
WSAVMB.01 CH.W. RETURN 20 120 32 300 100 400 100
WSAVMB.02 CH.W. RETURN 25 125 32 300 100 400 100
WSAVMB.03 CH.W. RETURN 32 132 32 300 100 400 100
WSAVMB.04 CH.W. RETURN 40 140 32 300 100 400 100
WSAVMB.05 CH.W. RETURN 50 150 32 300 100 400 100
WSAVMB.06 CH.W. RETURN 65 165 64 550 200 750 100
WSAVMB.07 CH.W. RETURN 80 180 64 550 200 750 100
WSAVMB.08 CH.W. RETURN 100 200 64 550 200 750 150
WSAVMB.09 CH.W. RETURN 125 225 64 550 200 750 150
WSAVMB.10 CH.W. RETURN 150 250 64 550 200 750 200
WSAVMB.11 CH.W. RETURN 200 300 89 850 200 1050 200
WSAVMB.12 CH.W. RETURN 250 350 89 850 200 1050 250
WSAVMB.13 CH.W. RETURN 300 400 89 850 200 1050 300
WSAVMB.14 CH.W. RETURN 350 450 89 850 200 1050 350
WSAVMCAA CIRCULATING ARROW  ( WHITE ON GREEN )
WSAVMCAA.1 CIRCULATING ARROW 20 – 50 120 – 150 32   100 100 5000
WSAVMCAA.2 CIRCULATING ARROW 65 – 150 165 – 250 64   200 200 5000
WSAVMCAA.2 CIRCULATING ARROW 200 & OVER 300 & OVER 89   200 200 5000

Fire fighting piping

ITEM NO. TRADE PIPE SIZING FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMC FIRE SPRINKLER WATER (WHITE ON RED)
WSAVMC.1 FIRE SPRINKLER WATER 25 13 200 50 250 50
WSAVMC.2 FIRE SPRINKLER WATER 32 13 200 50 250 50
WSAVMC.3 FIRE SPRINKLER WATER 40 19 200 100 300 50
WSAVMC.4 FIRE SPRINKLER WATER 50 19 200 100 300 50
WSAVMC.5 FIRE SPRINKLER WATER 65 32 400 100 500 50
WSAVMC.6 FIRE SPRINKLER WATER 80 32 400 100 500 50
WSAVMC.7 FIRE SPRINKLER WATER 100 32 400 100 500 80
WSAVMC.8 FIRE SPRINKLER WATER 150 32 400 100 500 120
WSAVMD FIRE STAND PIPE LINE (WHITE ON RED)
WSAVMD.1 FIRE STAND PIPE LINE 40 19 200 100 300 50
WSAVMD.2 FIRE STAND PIPE LINE 65 32 350 100 450 50
WSAVMD.3 FIRE STAND PIPE LINE 100 32 350 100 450 80
WSAVMD.4 FIRE STAND PIPE LINE 150 32 350 100 450 120
WSAVME FIRE DRAIN LINE (WHITE ON RED)
WSAVME.1 FIRE DRAIN LINE 50 19 200 100 300 50
WSAVME.2 FIRE DRAIN LINE 80 32 350 100 450 50
WSAVMF FIRE WET LINE (WHITE ON RED)
WSAVMF.1 FIRE WET LINE 150 32 350 100 450 120
WSAVMF.2 FIRE WET LINE 200 64 600 150 750 155
WSAVMF.3 FIRE WET LINE 250 64 600 150 750 200
WSAVMG FIRE PRE-ACTION LINE (WHITE ON RED)
WSAVMG.1 FIRE PRE-ACTION LINE 25 13 200 50 250 50
WSAVMG.2 FIRE PRE-ACTION LINE 32 13 200 50 250 50
WSAVMG.3 FIRE PRE-ACTION LINE 40 19 250 100 350 50
WSAVMG.4 FIRE PRE-ACTION LINE 50 19 250 100 350 50
WSAVMG.5 FIRE PRE-ACTION LINE 65 32 400 150 550 50
WSAVMCAB F.F. SPRINKLER LINE (WHITE ON RED)
WSAVMCAB.1 CIRCULATING ARROW 25 – 32 13   50 50 5000
WSAVMCAB.2 CIRCULATING ARROW 40 – 50 19   100 100 5000
WSAVMCAB.3 CIRCULATING ARROW 65 – 150 32   100 100 5000
WSAVMCAB.4 CIRCULATING ARROW 200 – 250 64   200 200 5000

Duct works

ITEM NO. TRADE DUCT SIZING FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMH  SUPPLY AIR (WHITE ON BLUE)
WSAVMH.1 SUPPLY AIR UP TO 300 mm 28 200 100 300 80
WSAVMH.2 SUPPLY AIR 350 to 600 mm 50 400 100 500 120
WSAVMH.3 SUPPLY AIR 650 to 1000 mm 65 450 200 650 150
WSAVMH.4 SUPPLY AIR 1050 to 1500 mm 95 750 200 950 170
WSAVMH.5 SUPPLY AIR OVER 1500 mm 95 750 200 950 200

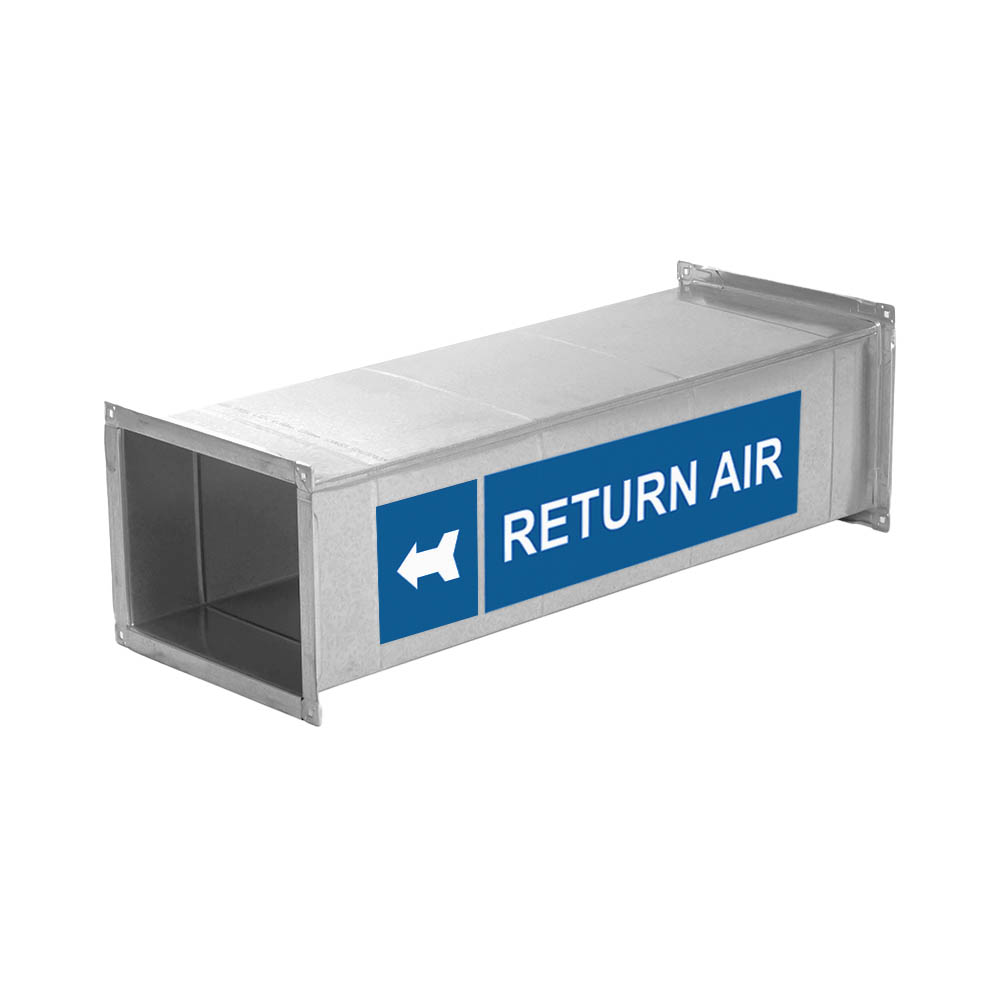

WSAVMI  RETURN AIR (WHITE ON BLUE)
WSAVMI.1 RETURN AIR UP TO 300 mm 28 200 100 300 80
WSAVMI.2 RETURN AIR 350 to 600 mm 50 400 100 500 120
WSAVMI.3 RETURN AIR 650 to 1000 mm 65 450 200 650 150
WSAVMI.4 RETURN AIR 1050 to 1500 mm 95 750 200 950 170
WSAVMI.5 RETURN AIR OVER 1500 mm 95 750 200 950 200
WSAVMJ  FRESH AIR (WHITE ON BLUE)
WSAVMJ.1 FRESH AIR UP TO 300 mm 28 200 100 300 80
WSAVMJ.2 FRESH AIR 350 to 600 mm 50 400 100 500 120
WSAVMJ.3 FRESH AIR 650 to 1000 mm 65 450 200 650 150
WSAVMJ.4 FRESH AIR 1050 to 1500 mm 95 750 200 950 170
WSAVMJ.5 FRESH AIR OVER 1500 mm 95 750 200 950 200
WSAVMJM  MAKE-UP AIR (WHITE ON BLUE)
WSAVMJM.1 MAKE-UP AIR UP TO 300 mm 28 200 100 300 80
WSAVMJM.2 MAKE-UP AIR 350 to 600 mm 50 400 100 500 120
WSAVMJM.3 MAKE-UP AIR 650 to 1000 mm 65 450 200 650 150
WSAVMJM.4 MAKE-UP AIR 1050 to 1500 mm 95 750 200 950 170
WSAVMJM.5 MAKE-UP AIR OVER 1500 mm 95 750 200 950 200
WSAVMK  PRESSUIZATION AIR (WHITE ON BLUE)
WSAVMK.1 PRESSUIZATION AIR UP TO 300 mm 28 350 100 450 80
WSAVMK.2 PRESSUIZATION AIR 350 to 600 mm 50 700 100 800 120
WSAVMK.3 PRESSUIZATION AIR 650 to 1000 mm 65 900 200 1000 150
WSAVMK.4 PRESSUIZATION AIR 1050 to 1500 mm 95 1000 200 1200 170
WSAVMK.5 PRESSUIZATION AIR OVER 1500 mm 95 1000 200 1200 200
WSAVML  EXHAUST AIR (WHITE ON BLUE)
WSAVML.1  EXHAUST AIR UP TO 300 mm 28 200 100 300 80
WSAVML.2  EXHAUST AIR 350 to 600 mm 50 450 100 550 120
WSAVML.3  EXHAUST AIR 650 to 1000 mm 65 500 200 700 150
WSAVML.4  EXHAUST AIR 1050 to 1500 mm 95 800 200 1000 170
WSAVML.5  EXHAUST AIR OVER 1500 mm 95 800 200 1000 200
WSAVMCAC  CIRCULATING ARROW (WHITE ON BLUE)
WSAVMCAC.1 ARROW UP TO 300 mm 28   100 100 5000
WSAVMCAC.2 ARROW 350 to 600 mm 50   100 100 5000
WSAVMCAC.3 ARROW 650 to 1000 mm 65   200 200 5000
WSAVMCAC.4 ARROW 1050 to 1500 mm 95   200 200 5000
WSAVMCAC.5 ARROW OVER 1500 mm 95   200 200 5000

Kitchen exhaust / smoke air

TEM NO. TRADE DUCT SIZING FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMM KITCHEN EXHAUST HOOD (BLACK ON YELLOW)
WSAVMM.1 KITCHEN EXHAUST HOOD UP TO 300 mm 28 500 100 600 80
WSAVMM.2 KITCHEN EXHAUST HOOD 350 to 600 mm 50 950 100 1050 120
WSAVMM.3 KITCHEN EXHAUST HOOD 650 to 1000 mm 65 1100 200 1300 150

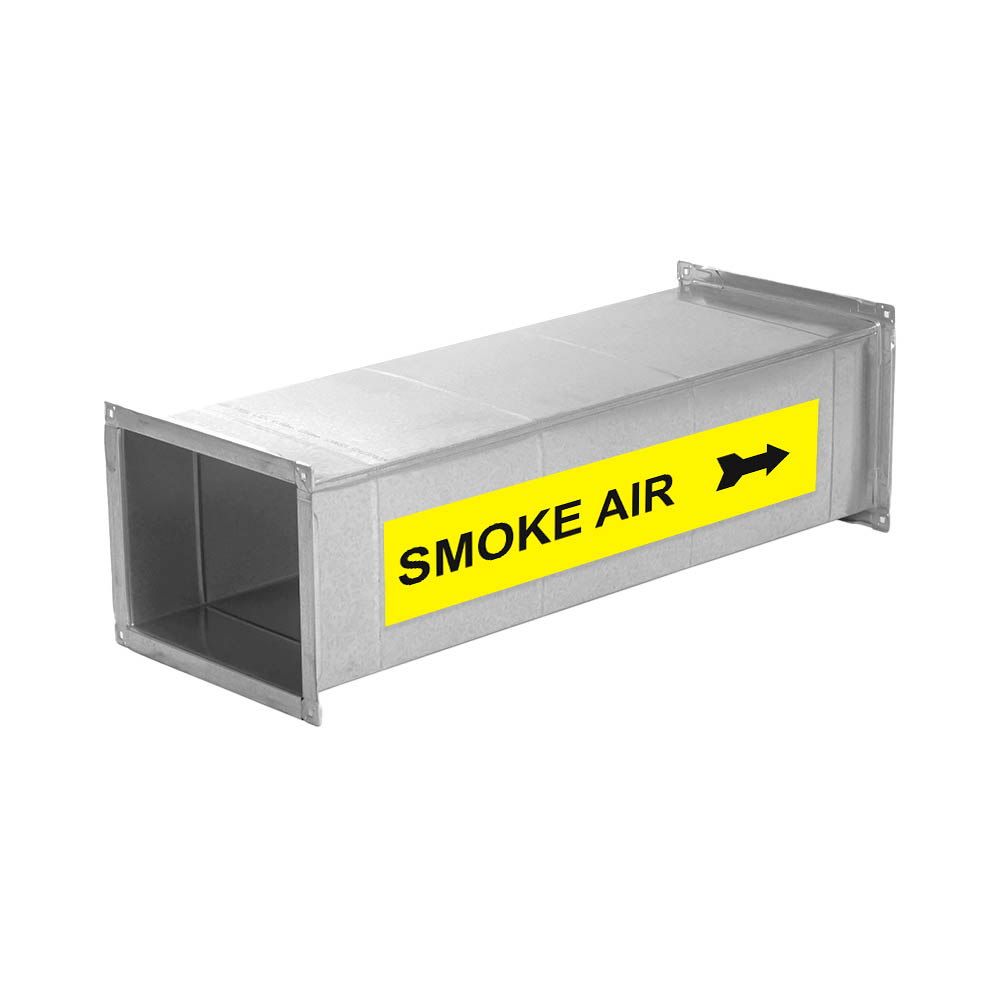

WSAVMN  SMOKE AIR (BLACK ON YELLOW)
WSAVMN.1 SMOKE AIR UP TO 300 mm 28 200 100 300 80
WSAVMN.2 SMOKE AIR 350 to 600 mm 50 450 100 550 120
WSAVMN.3 SMOKE AIR 650 to 1000 mm 65 500 200 700 150
WSAVMN.4 SMOKE AIR 1050 to 1500 mm 95 800 200 1000 170
WSAVMN.5 SMOKE AIR OVER 1500 mm 95 800 200 1000 200
WSAVMCAD  CIRCULATING ARROW (BLACK ON YELLOW)
WSAVMCAD.1 ARROW UP TO 300 mm 28   100 100 5000
WSAVMCAD.2 ARROW 350 to 600 mm 50   100 100 5000
WSAVMCAD.3 ARROW 650 to 1000 mm 65   200 200 5000
WSAVMCAD.4 ARROW 1050 to 1500 mm 95   200 200 5000
WSAVMCAD.5 ARROW OVER 1500 mm 95   200 200 5000

Drainage piping

ITEM NO. TRADE PIPE SIZING OVER ALL O.D FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMO SOIL DRAINAGE ( WHITE ON GREEN )
WSAVMO.1 SOIL DRAINAGE 110 32 300 100 400 80
WSAVMO.2 SOIL DRAINAGE 150 32 300 100 400 120
WSAVMO.3 SOIL DRAINAGE 200 64 600 200 800 155
WSAVMP WASTE DRAINAGE ( WHITE ON GREEN )
WSAVMP.1 WASTE DRAINAGE 50 19 200 100 300 50
WSAVMP.2 WASTE DRAINAGE 65 32 350 100 450 50
WSAVMP.3 WASTE DRAINAGE 75 32 350 100 450 50
WSAVMP.4 WASTE DRAINAGE 110 32 350 100 450 80
WSAVMP.5 WASTE DRAINAGE 150 32 350 100 450 120
WSAVMP.6 WASTE DRAINAGE 200 64 650 200 850 155
WSAVMPC CONDENSATE PIPE  ( WHITE ON GREEN )
WSAVMPC.1 CONDENSATE PIPE 20 58 32 350 100 450 50
WSAVMPC.2 CONDENSATE PIPE 25 63 32 350 100 450 50
WSAVMPC.3 CONDENSATE PIPE 32 70 32 350 100 450 50
WSAVMPC.4 CONDENSATE PIPE 40 78 32 350 100 450 50
WSAVMPC.5 CONDENSATE PIPE 50 88 32 350 100 450 80
WSAVMQ STORM DRAINAGE ( WHITE ON GREEN )
WSAVMQ.1 STORM DRAINAGE 110 32 350 100 450 80
WSAVMQ.2 STORM DRAINAGE 150 32 350 100 450 120
WSAVMQ.3 STORM DRAINAGE 200 64 650 200 850 155
WSAVMQ.4 STORM DRAINAGE 250 64 650 200 850 200
WSAVMR VENT PIPE ( WHITE ON GREEN )
WSAVMR.1 VENT PIPE 50 19 200 100 300 50
WSAVMR.2 VENT PIPE 75 32 300 100 400 50
WSAVMR.3 VENT PIPE 110 32 300 100 400 80
WSAVMR.4 VENT PIPE 150 32 300 100 400 120
WSAVMS FORCED MAIN ( WHITE ON GREEN )
WSAVMS.1 FORCED MAIN 75 32 300 100 400 50
WSAVMS.2 FORCED MAIN 110 32 300 100 400 80
WSAVMS.3 FORCED MAIN 150 32 300 100 400 120
WSAVMS.4 FORCED MAIN 200 64 550 200 750 155
WSAVMS.5 FORCED MAIN 250 64 550 200 750 200
WSAVMCAE CIRCULATING ARROW  ( WHITE ON GREEN )
WSAVMCAE.1 CIRCULATING ARROW 40 – 50 19   100 100 5000
WSAVMCAE.2 CIRCULATING ARROW 65 – 150 32   100 100 5000
WSAVMCAE.3 CIRCULATING ARROW 200 – 250 64   200 200 5000

Domestic water supply

ITEM NO. TRADE PIPE SIZING FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMT DOMESTIC  COLD WATER ( WHITE ON GREEN )
WSAVMT.1 DOMESTIC COLD WATER 25 13 200 50 250 40
WSAVMT.2 DOMESTIC COLD WATER 32 13 200 50 250 50
WSAVMT.3 DOMESTIC COLD WATER 40 19 250 100 350 50
WSAVMT.4 DOMESTIC COLD WATER 50 19 250 100 350 50
WSAVMT.5 DOMESTIC COLD WATER 63 32 450 100 550 50
WSAVMT.6 DOMESTIC COLD WATER 75 32 450 100 550 50
WSAVMT.7 DOMESTIC COLD WATER 90 32 450 100 550 80
WSAVMT.8 DOMESTIC COLD WATER 110 32 450 100 550 80
WSAVMT.9 DOMESTIC COLD WATER 150 32 450 100 550 120
WSAVMT.10 DOMESTIC COLD WATER 200 64 650 200 850 155
WSAVMCAF CIRCULATING ARROW ( WHITE ON GREEN )
WSAVMCAF.1 CIRCULATING ARROW 25 – 32 13   50 50 5000
WSAVMCAF.2 CIRCULATING ARROW 40 – 50 19   100 100 5000
WSAVMCAF.3 CIRCULATING ARROW 65 – 150 32   100 100 5000
WSAVMCAF.4 CIRCULATING ARROW 200 – 250 64   200 200 5000

Hot water

ITEM NO. TRADE PIPE SIZING OVER ALL O.D FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMU HOT WATER SUPPLY (RED ON YELLOW)
WSAVMU.1 HOT WATER SUPPLY 25 13 150 50 200 40
WSAVMU.2 HOT WATER SUPPLY 32 13 150 50 200 50
WSAVMU.3 HOT WATER SUPPLY 40 19 200 100 300 50
WSAVMU.4 HOT WATER SUPPLY 50 19 200 100 300 50
WSAVMU.5 HOT WATER SUPPLY 63 32 400 100 500 50
WSAVMU.6 HOT WATER SUPPLY 75 32 400 100 500 50
WSAVMU.7 HOT WATER SUPPLY 90 32 400 100 500 80
WSAVMU.8 HOT WATER SUPPLY 110 32 400 100 500 80
WSAVMU.9 HOT WATER SUPPLY 150 32 400 100 500 120
WSAVMV HOT WATER RETURN (RED ON YELLOW)
WSAVMV.1 HOT WATER RETURN 25 13 150 50 200 40
WSAVMV.2 HOT WATER RETURN 32 13 150 50 200 50
WSAVMV.3 HOT WATER RETURN 40 19 200 100 300 50
WSAVMV.4 HOT WATER RETURN 50 19 200 100 300 50
WSAVMV.5 HOT WATER RETURN 63 32 400 100 500 50
WSAVMV.6 HOT WATER RETURN 75 32 400 100 500 50
WSAVMV.7 HOT WATER RETURN 90 32 400 100 500 80
WSAVMV.8 HOT WATER RETURN 110 32 400 100 500 80
WSAVMV.9 HOT WATER RETURN 150 32 400 100 500 120
WSAVMCAG CIRCULATING ARROW (RED ON YELLOW)
WSAVMCAG.1 CIRCULATING ARROW 25 – 32 13   50 50 5000
WSAVMCAG.2 CIRCULATING ARROW 40 – 50 19   100 100 5000
WSAVMCAG.3 CIRCULATING ARROW 65 – 150 32   100 100 5000

Refrigerant & fuel piping

ITEM NO. TRADE PIPE SIZING OVER ALL O.D FONT SIZE DIMENSIONS
W [TEXT]

mm

 W [ARROW]

mm

 W [TOTAL]

mm

 H

mm
WSAVMW REFRIGERANT PIPING ( BLACK ON YELLOW )
WSAVMW.1 LIQUID REFRIGERANT 22 72 32 400 100 500 50
WSAVMW.2 GAS REFRIGERANT 35 85 32 400 100 500 80
WSAVMX FUEL PIPE (BLACK ON YELLOW)
WSAVMX.1 FUEL PIPE LINE 25 13 200 50 250 40 80
WSAVMCAH CIRCULATING ARROW (BLACK ON YELLOW)
WSAVMCAH.1 CIRCULATING ARROW 22 – 35 32   100 100 5000

Power and Lighting Cable Tray

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEA POWER CABLE TRAY 400V (BLACK ON ORANGE)
WSAVEA.1 POWER CABLE TRAY 400V UP TO 300 mm 28 500 80
WSAVEA.2 POWER CABLE TRAY 400V 350 to 600 mm 50 850 120
WSAVEA.3 POWER CABLE TRAY 400V 650 to 1000 mm 65 1050 150
WSAVEA.4 POWER CABLE TRAY 400V OVER 1000 mm 95 1550 200
WSAVEB POWER CIRCUIT TRAY 200V (BLACK ON ORANGE)
WSAVEB.1 POWER CIRCUIT TRAY 200V UP TO 300 mm 28 500 80
WSAVEB.2 POWER CIRCUIT TRAY 200V 350 to 600 mm 50 850 120
WSAVEB.3 POWER CIRCUIT TRAY 200V 650 to 1000 mm 65 1050 150
WSAVEB.4 POWER CIRCUIT TRAY 200V OVER 1000 mm 95 1550 200
WSAVEC LIGHTING TRAY (BLACK ON ORANGE)
WSAVEC.1 LIGHTING TRAY UP TO 300 mm 28 500 80
WSAVEC.2 LIGHTING TRAY 350 to 600 mm 50 850 120
WSAVEC.3 LIGHTING TRAY 650 to 1000 mm 65 1050 150
WSAVEC.4 LIGHTING TRAY OVER 1000 mm 95 1550 200
WSAVED POWER / LIGHTING TRAY (BLACK ON ORANGE)
WSAVED.1 POWER / LIGHTING TRAY UP TO 300 mm 28 500 80
WSAVED.2 POWER / LIGHTING TRAY 350 to 600 mm 50 850 120
WSAVED.3 POWER / LIGHTING TRAY 650 to 1000 mm 65 1050 150
WSAVED.4 POWER / LIGHTING TRAY OVER 1000 mm 95 1550 200

LV power cable tray & BMS trunk

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEE LV POWER CABLE TRAY (BLACK ON YELLOW)
WSAVEE.1 LV POWER CABLE TRAY UP TO 300 mm 28 500 80
WSAVEE.2 LV POWER CABLE TRAY 350 to 600 mm 50 850 120
WSAVEE.3 LV POWER CABLE TRAY 650 to 1000 mm 65 1050 150
WSAVEE.4 LV POWER CABLE TRAY OVER 1000 mm 95 1550 200
WSAVEF BMS TRUNK (BLACK ON YELLOW)
WSAVEF.1 BMS TRUNK UP TO 300 mm 28 500 80
WSAVEF.2 BMS TRUNK 350 to 600 mm 50 850 120
WSAVEF.3 BMS TRUNK 650 to 1000 mm 65 1050 150
WSAVEF.4 BMS TRUNK OVER 1000 mm 95 1550 200

Fire alarm trunk

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEG FIRE ALARM TRUNK (WHITE ON RED)
WSAVEG.1 FIRE ALARM TRUNK UP TO 300 mm 28 500 80
WSAVEG.2 FIRE ALARM TRUNK 350 to 600 mm 50 850 120
WSAVEG.3 FIRE ALARM TRUNK 650 to 1000 mm 65 1050 150
WSAVEG.4 FIRE ALARM TRUNK OVER 1000 mm 95 1550 200

Low current systems

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEH TELEPHONE TRUNK (WHITE ON BLUE)
WSAVEH.1 TELEPHONE TRUNK UP TO 300 mm 28 500 80
WSAVEH.2 TELEPHONE TRUNK 350 to 600 mm 50 850 120
WSAVEH.3 TELEPHONE TRUNK 650 to 1000 mm 65 1050 150
WSAVEH.4 TELEPHONE TRUNK OVER 1000 mm 95 1550 200
WSAVEJ LOW CURRENT TRUNK (WHITE ON BLUE)
WSAVEJ.1 LOW CURRENT TRUNK UP TO 300 mm 28 500 80
WSAVEJ.2 LOW CURRENT TRUNK 350 to 600 mm 50 850 120
WSAVEJ.3 LOW CURRENT TRUNK 650 to 1000 mm 65 1050 150
WSAVEJ.4 LOW CURRENT TRUNK OVER 1000 mm 95 1550 200
WSAVEK SECURITY SYSTEM TRUNK (WHITE ON BLUE)
WSAVEK.1 SECURITY SYSTEM TRUNK UP TO 300 mm 28 500 80
WSAVEK.2 SECURITY SYSTEM TRUNK 350 to 600 mm 50 850 120
WSAVEK.3 SECURITY SYSTEM TRUNK 650 to 1000 mm 65 1050 150
WSAVEK.4 SECURITY SYSTEM TRUNK OVER 1000 mm 95 1550 200
WSAVEL PUBLIC ADDRESS TRUNK (WHITE ON BLUE)
WSAVEL.1 PUBLIC ADDRESS TRUNK UP TO 300 mm 28 500 80
WSAVEL.2 PUBLIC ADDRESS TRUNK 350 to 600 mm 50 850 120
WSAVEL.3 PUBLIC ADDRESS TRUNK 650 to 1000 mm 65 1050 150
WSAVEL.4 PUBLIC ADDRESS TRUNK OVER 1000 mm 95 1550 200
WSAVEM CCTV TRUNK (WHITE ON BLUE)
WSAVEM.1 CCTV TRUNK UP TO 300 mm 28 500 80
WSAVEM.2 CCTV TRUNK 350 mm to 600 mm 50 850 120
WSAVEM.3 CCTV TRUNK 650 to 1000 mm 65 1050 150
WSAVEM.4 CCTV TRUNK OVER 1000 mm 95 1550 200

Video intercom trunks

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEN VIDEO INTERCOM TRUNK (YELLOW ON BLUE)
WSAVEN.1 VIDEO INTERCOM TRUNK UP TO 300 mm 28 500 80
WSAVEN.2 VIDEO INTERCOM TRUNK 350 to 600 mm 50 850 120
WSAVEN.3 VIDEO INTERCOM TRUNK 650 to 1000 mm 65 1050 150
WSAVEN.4 VIDEO INTERCOM TRUNK OVER 1000 mm 95 1550 200

Emergency Light Tray

ITEM NO. TRADE TRAY SIZE FONT SIZE DIMENSIONS
W [mm] H [mm]
WSAVEO EMERGENCY LIGHT TRAY (GREEN ON WHITE)
WSAVEO.1 EMERGENCY LIGHT TRAY UP TO 300 mm 28 500 80
WSAVEO.2 EMERGENCY LIGHT TRAY 350 to 600 mm 50 850 120
WSAVEO.3 EMERGENCY LIGHT TRAY 650 to 1000 mm 65 1050 150
WSAVEO.4 EMERGENCY LIGHT TRAY OVER 1000 mm 95 1550 200
Related Products

Related products

Get in Touch

    Agree to our terms and conditions.
    x

    ABOUT US

    Progressively maintain extensive infomediaries via extensible nich. Capitalize on low hanging fruit. a ballpark value added is activity to beta test. Override the digital divide with additional click throughs from fruit.

    LOCATIONS

    map

    New York Office

    +07 554 332 322
    37 San Fairport, NY 14450, New York City
    All Locations

    FOLLOW US
