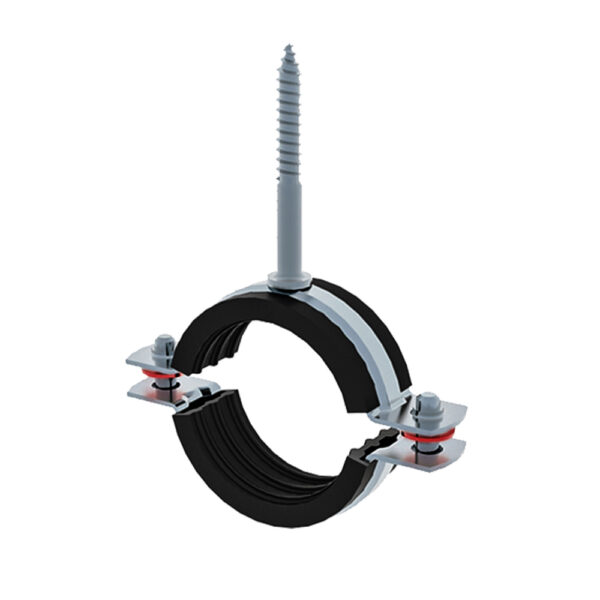

Rubber Lined Split Clamp with welded screw

Size Range: ½ ‘’ through 2’’

Material : Carbon Steel

– EPDM Rubber Lining for noise reduction level up to 15dB acc. to DIN4109, vibration reduction and partial compensation of thermal expansion.

Finish :

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Description
Additional Specs

Description

Used for mounting of pipes to the walls, vertical or horizontal runs, Side screws are protected against loss during assembly with the help of plastic washers. EPDM Rubber Lining for noise reduction level up to 15dB, vibration reduction and partial compensation of thermal expansion.

Additional Specs

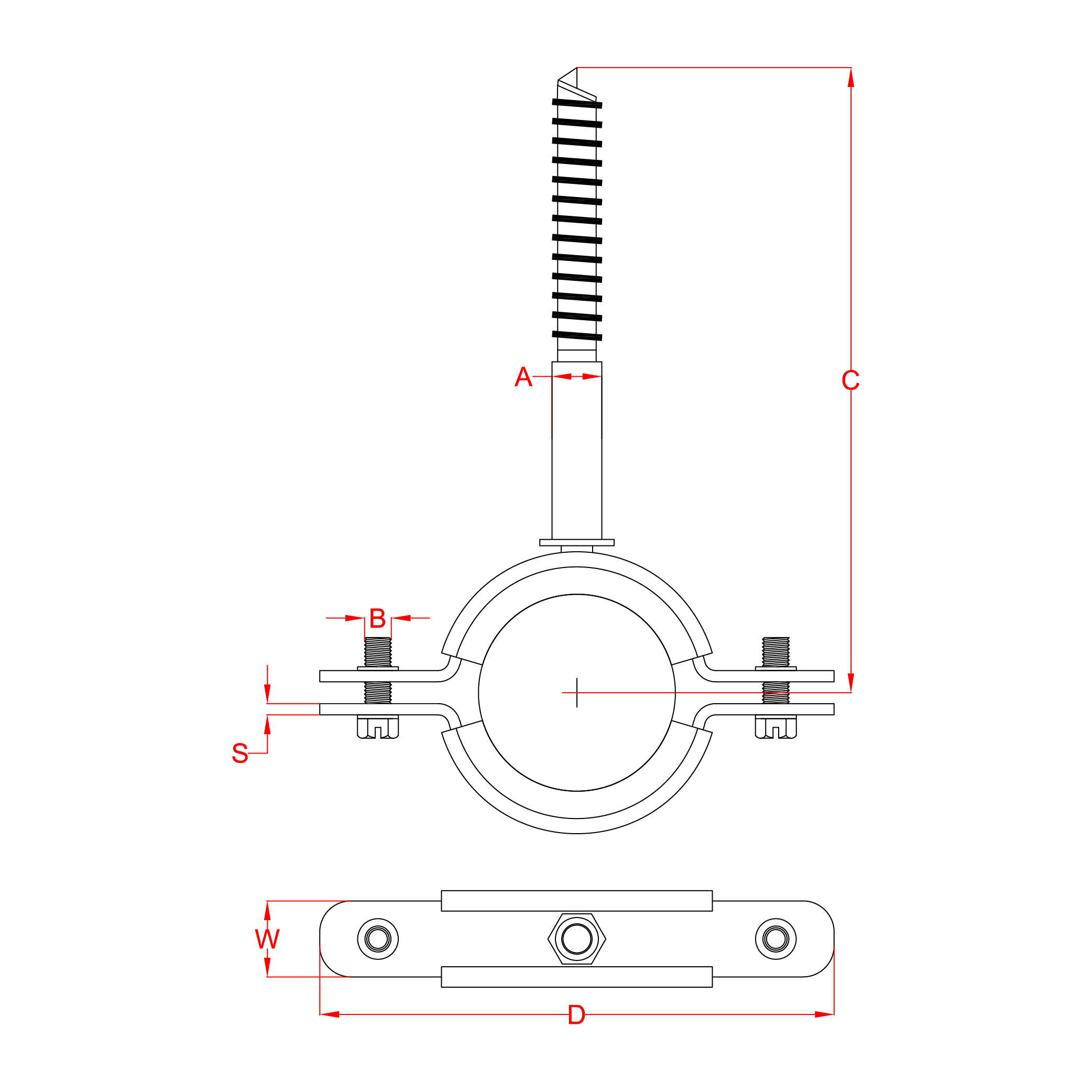

Part No.	Size		Clamping Range	Size of Steel		EPDM Rubber Profile	A	B	C	D	Max Recom. Load
Part No.	Inch	DN	Clamping Range	S [mm]	W [mm]	EPDM Rubber Profile	A	B	[mm]	[mm]	kN
WLSC015	½	15	20-24	1.5	20	1.5 x 20	φ7	M5	80	62.5	1.3
WLSC020	¾	20	25-28	1.5	20		φ7	M5	83	68.5	1.3
WLSC025	1	25	32-35	1.5	20		φ7	M5	86.5	76	1.3
WLSC032	1 ¼	32	39-46	1.5	20		φ7	M6	91	91.5	1.6
WLSC040	1 ½	40	48-53	1.5	20		φ7	M6	91.5	99	1.6
WLSC050	2	50	59-66	1.5	20		φ7	M6	101	112	1.6

Rubber Lined Split Clamp with welded screw
