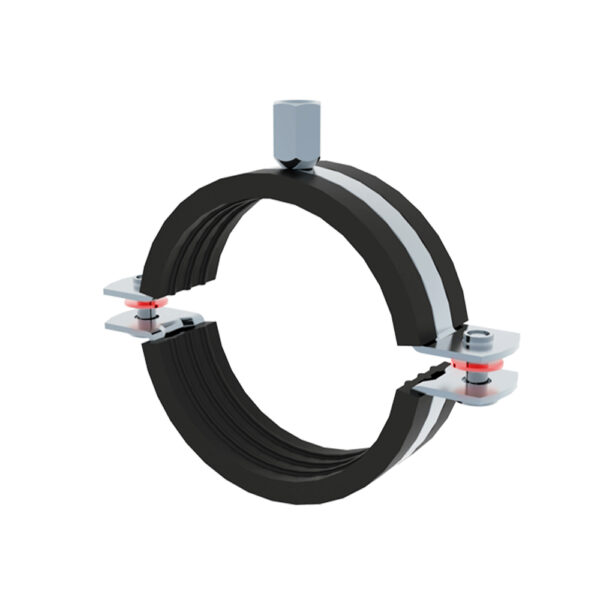

Rubber Lined Split Clamp

Size Range: ½ ‘’ through 10’’

Material : Carbon Steel

EPDM Rubber Lining for noise reduction level up to 15dB acc. to DIN4109, vibration reduction and partial compensation of thermal expansion.

Finish:

Electro-Galvanization acc. to

• ASTM B 633/ASTM F 1941

• EN ISO 2081/EN ISO 4042

Hot Dipped Galvanized (HDG) acc. to

• ASTM A153/153M

• ASTM A123/123M

• EN ISO 1461/EN ISO 10684

Description
Additional Specs

Description

Used for mounting of pipes to the walls, vertical or horizontal runs, Side screws are protected against loss during assembly with the help of plastic washers. EPDM Rubber Lining for noise reduction level up to 15dB, vibration reduction and partial compensation of thermal expansion.

Additional Specs

Part No.	Size		Clamping Range	Size of Steel		EPDM Rubber Profile	A	B	C	D	Max Recom. Load

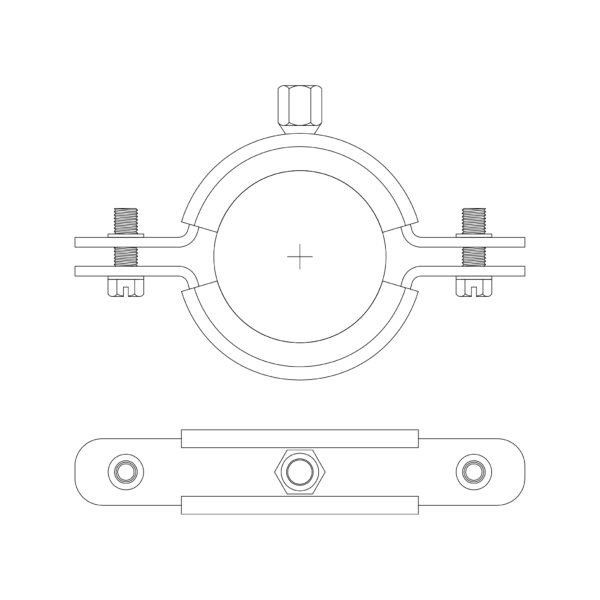

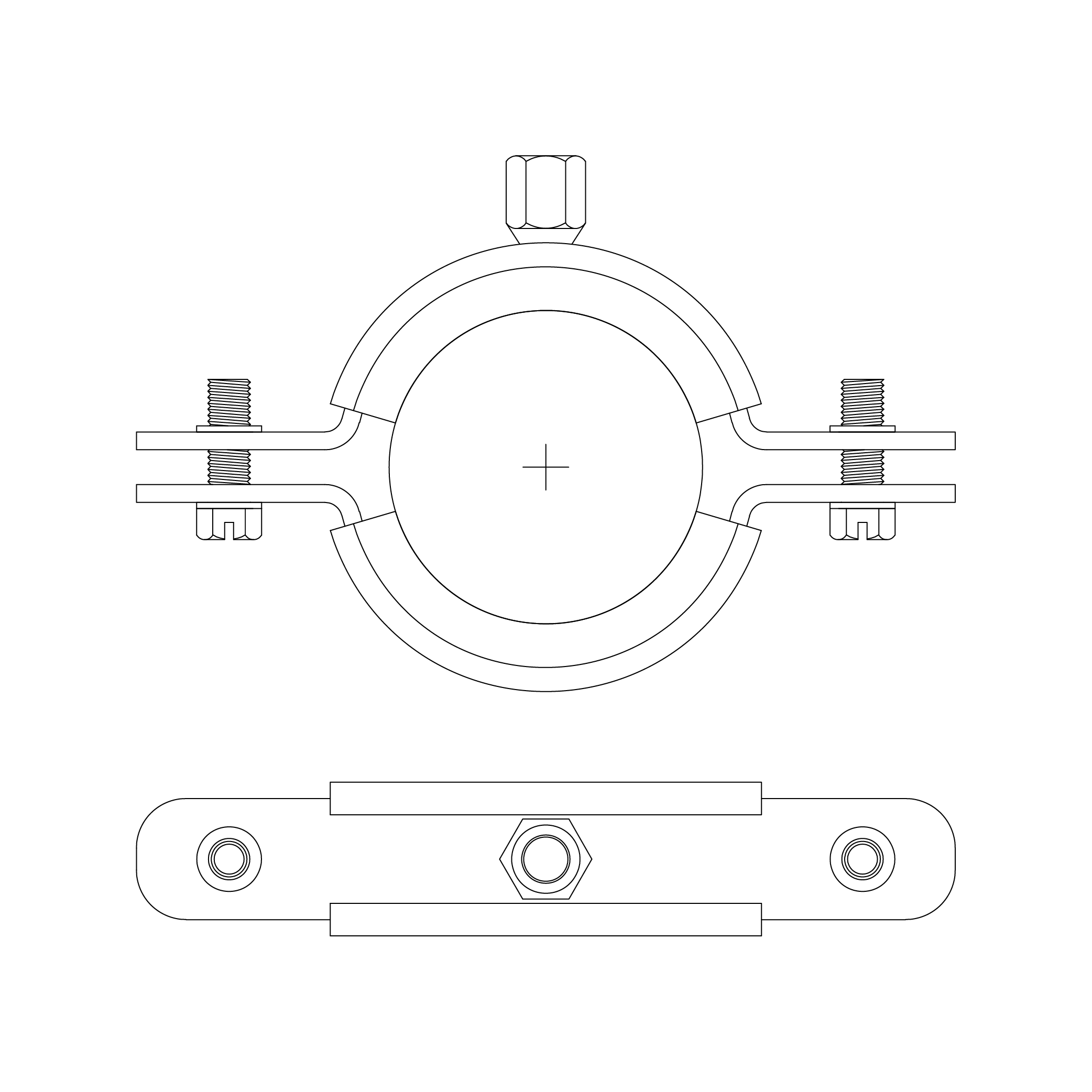

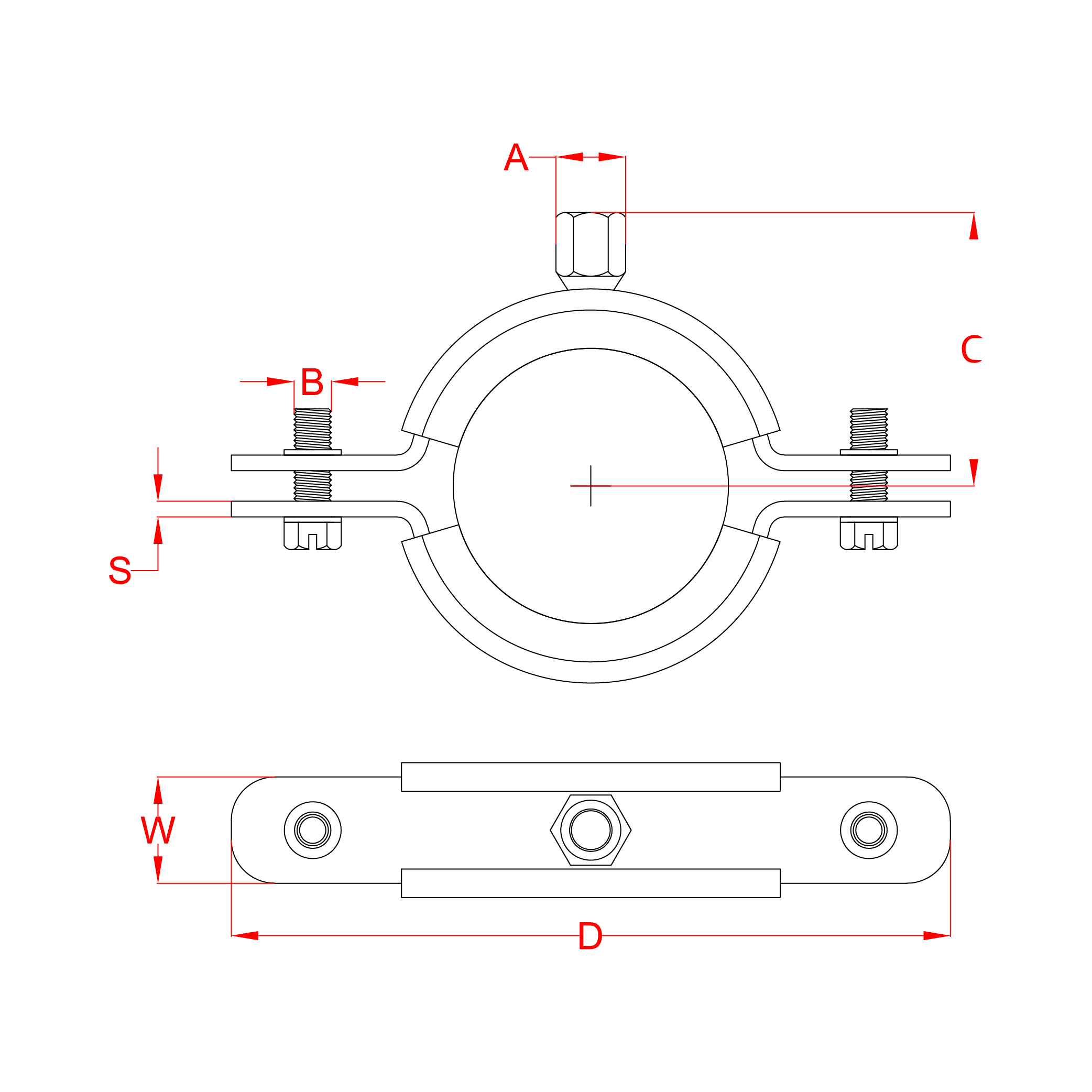

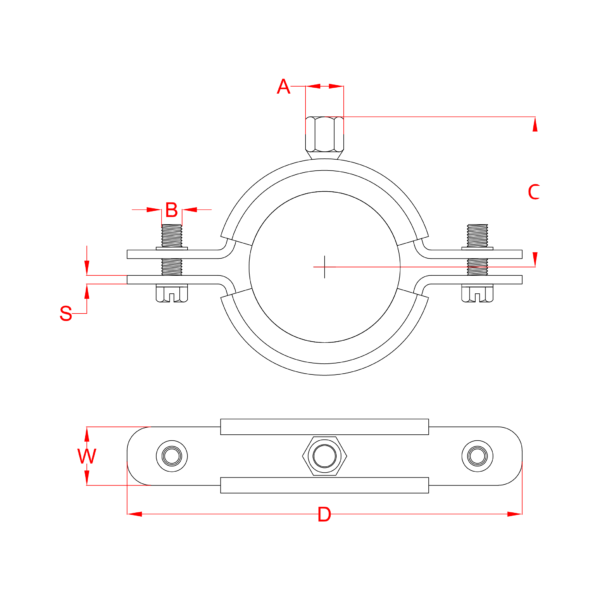

Part No.	Inch	DN	Clamping Range	S [mm]	W [mm]	EPDM Rubber Profile	A	B	[mm]	[mm]	kN
WLSC015	½	15	20-24	1.5	20	1.5 x 20	M8	M5	28	62.5	1.3
WLSC020	¾	20	25-28	1.5	20		M8	M5	31	68.5	1.3
WLSC025	1	25	32-35	1.5	20		M8	M5	34.5	76	1.3
WLSC032	1 ¼	32	39-46	1.5	20		M8	M6	39	91.5	1.6
WLSC040	1 ½	40	48-53	1.5	20		M8	M6	42.5	99	1.6
WLSC050	2	50	59-66	1.5	20		M8	M6	49	112	1.6
WLSC065	2 ½	65	74-80	2	25	3 x 25	M8/M10	M6	66	134	2.3
WLSC080	3	80	87-94	2	25		M8/M10	M6	71.5	146.5	2.3
WLSC100	4	100	110-116	2.5	25		M8/M10	M6	85	173	2.6
WLSC125	5	125	135-143	2.5	25		M8/M10	M6	98	203	2.6
WLSC150	6	150	162-170	2.5	25		M8/M10	M6	110.5	229	2.6
WLSC200	8	200	207-219	2.5	25		M8/M10	M6	138	280.7	2.6
WLSC250	10	250	273	2.5	25		M8/M10	M6	162	332	2.6
