• ASTM B 633/ASTM F 1941
• EN ISO 2081/EN ISO 4042
Hot Dipped Galvanized (HDG) acc. to
• ASTM A153/153M
• ASTM A123/123M
• EN ISO 1461/EN ISO 10684

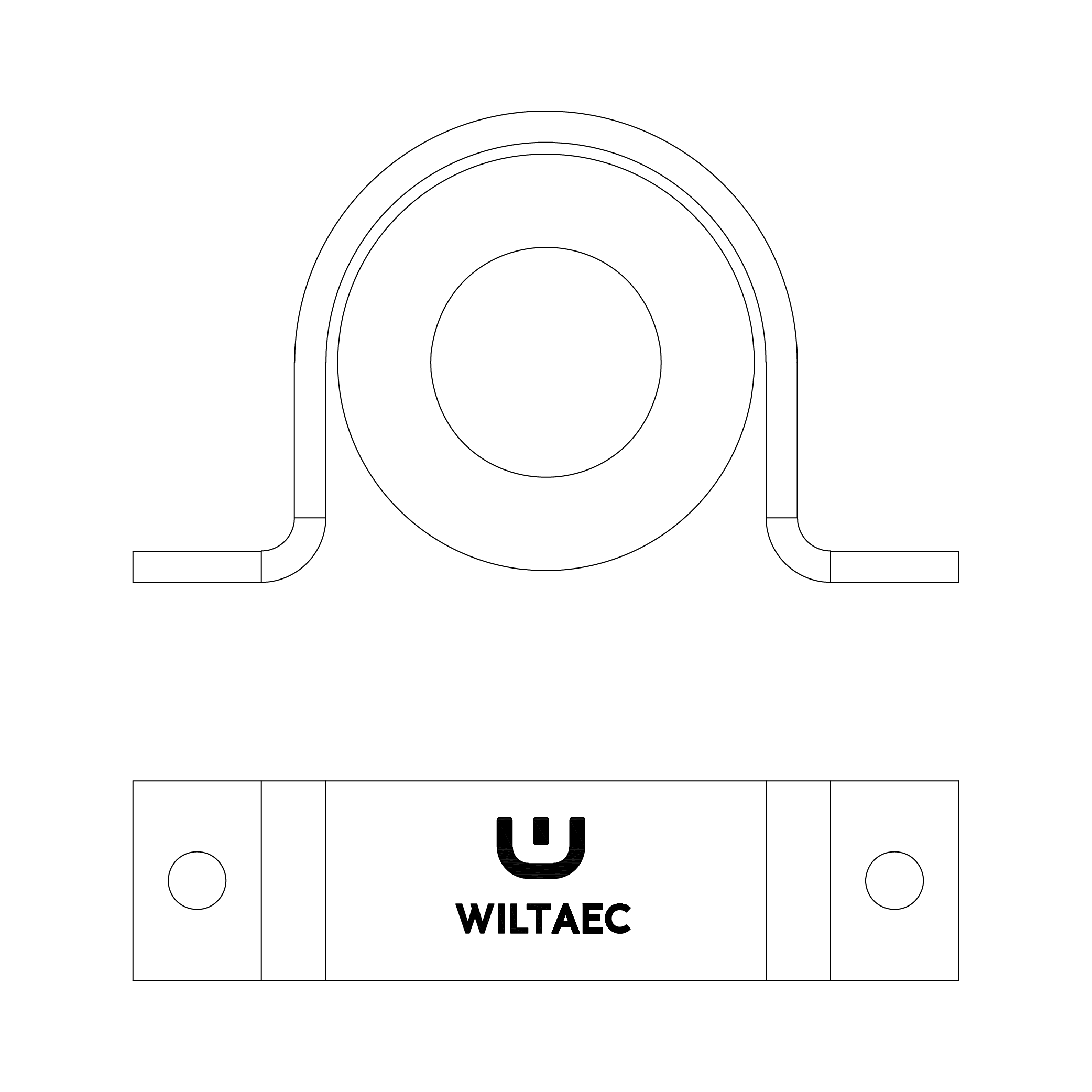

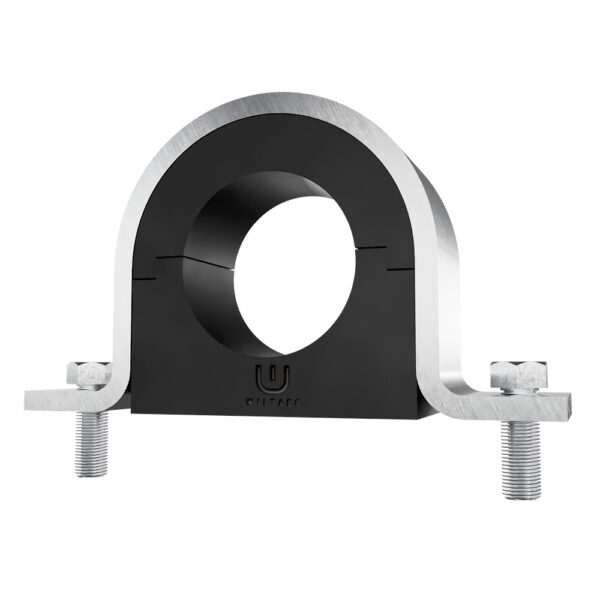

Designed as attachment for hanging with the pipe hanging saddle A series. The Strap is designed as an economical product for pipes not subject to expansion or contraction. Suitable for using chilled water lines.
For t = 13 mm or 19 mm can be supplied separately upon request.

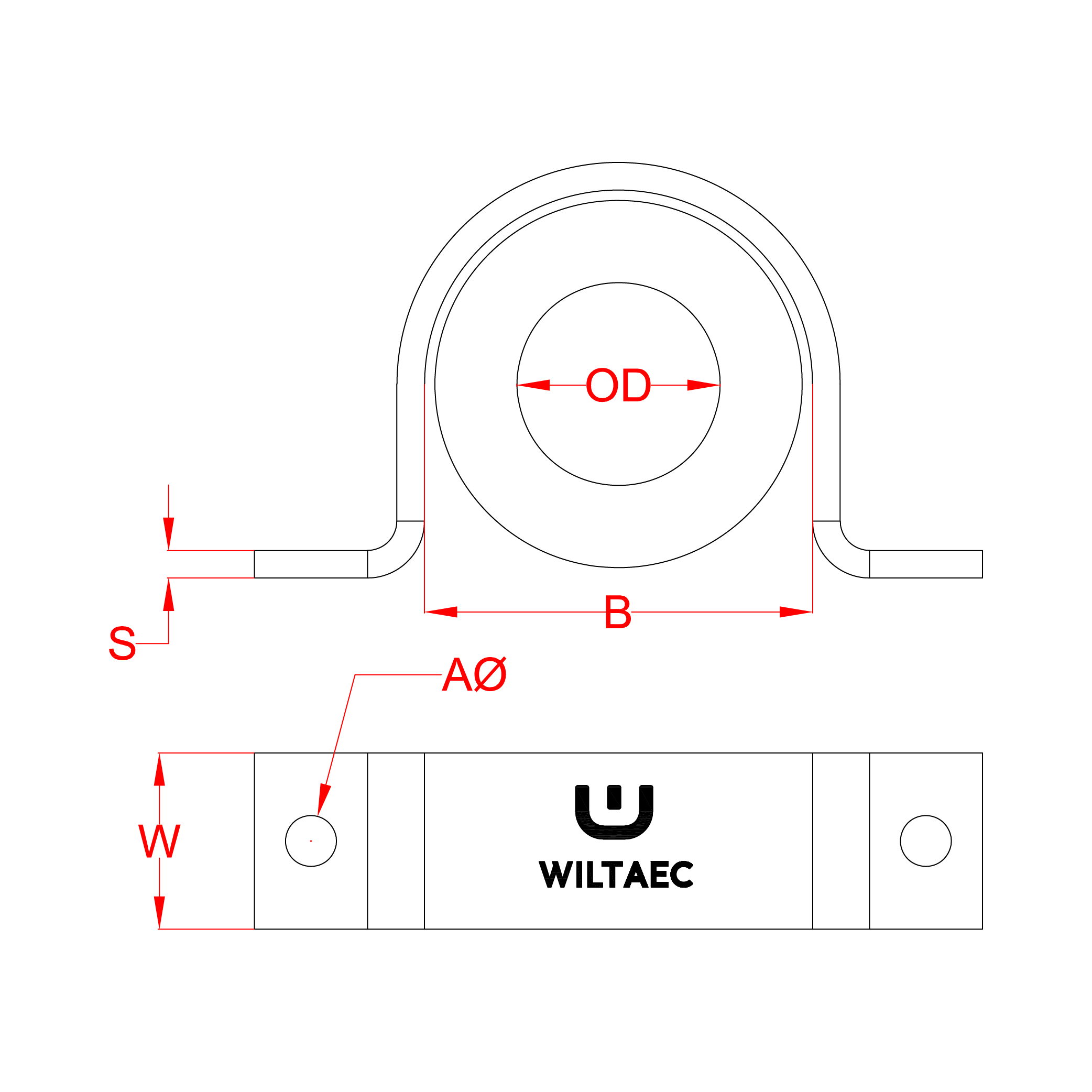

| Part No. | Size | Size of Steel | A | Insulation Thickness t=25 | ||||
| Inch | DN | OD [mm] | S [mm] | W [mm] | B [mm] | |||
| WPS015 | ½ | 15 | 21.3 | 2 | 25 | 8 | 71.3 | |
| WPS020 | ¾ | 20 | 26.9 | 2 | 25 | 8 | 76.9 | |
| WPS025 | 1 | 25 | 33.7 | 2 | 25 | 8 | 83.7 | |
| WPS032 | 1 ¼ | 32 | 42.4 | 2 | 25 | 8 | 92.4 | |
| WPS040 | 1 ½ | 40 | 48.3 | 2 | 25 | 8 | 98.3 | |
| WPS050 | 2 | 50 | 60.3 | 2 | 25 | 10 | 110.3 | |
| WPS065 | 2 ½ | 65 | 76.1 | 3 | 25 | 10 | 126.1 | |
| WPS080 | 3 | 80 | 88.9 | 3 | 25 | 10 | 138.9 | |
| WPS100 | 4 | 100 | 114.3 | 3 | 25 | 12 | 164.3 | |
| WPS125 | 5 | 125 | 139.7 | 3 | 25 | 12 | 189.7 | |
| WPS150 | 6 | 150 | 168.3 | 3 | 25 | 12 | 218.3 | |
| WPS200 | 8 | 200 | 219.1 | 3 | 40 | 12 | 269.1 | |
| WPS250 | 10 | 250 | 273 | 5 | 40 | 12 | 323 | |
| WPS300 | 12 | 300 | 323.9 | 5 | 40 | 12 | 373.9 | |
