Size Range: 100×100, 100×120
Material: Steel 1.0039 [S235JRH]
Finish:
Hot Dipped Galvanized (HDG) acc. To ASTM A153/153M – ASTM A123/123M – EN ISO 1461/EN ISO 10684

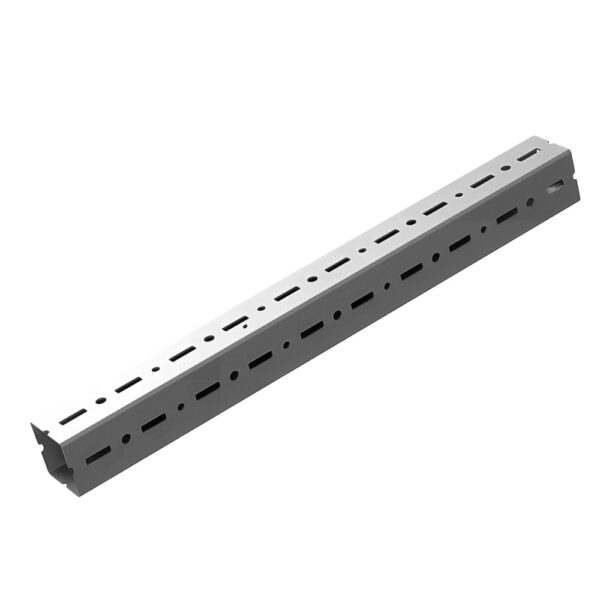

Designed as modular system for practical installations. 4-Sided mounting holes provide universal assemblies.
Its box design provides torsion stiffness more than other framing profiles. Because of its high carrying
capacity it is perfect match for industrial and heavy-duty system applications.
Designed for all medium and heavy application, quick and easy fixing to the profile

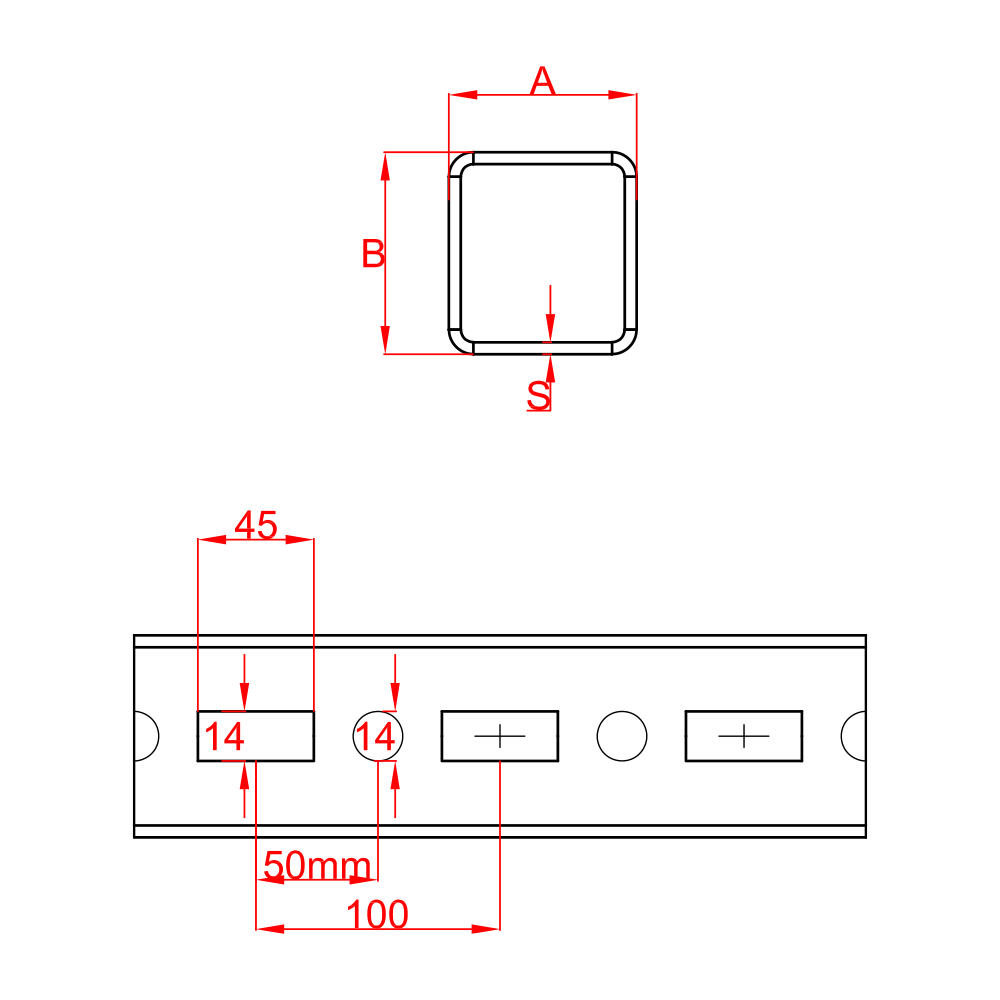

| Part No. | SIZE | Cross section area | Section modulus of Torsion | Torsion moment of Inertia | Moment of
Inertia |
Section
Modulus |
Weight
Per meter |
||||
| A | B | S | Wp | Ip | IY | IZ | WY | WZ | |||
| mm | mm | mm | mm2 | [cm3] | [cm4] | [cm4] | [cm4] | [cm3] | [cm3] | kg | |
| WHFR100 | 100 | 100 | 3 | 974.5 | 55.7 | 85.4 | 155.98 | 155.98 | 31.2 | 31.2 | 8.16 |
| WHFR120 | 100 | 120 | 4 | 1433.06 | 88.2 | 126.1 | 308.30 | 235.65 | 51.38 | 47.13 | 11.94 |
