Material: Nut: Steel acc. to ASTM A108
Tailpiece: Brass
Insulator: Nylon
Gasket: EPDM
Finish:
Electro-Galvanization acc. to
Temperature Resistance: -30 C: 82 C
Threading Connection:

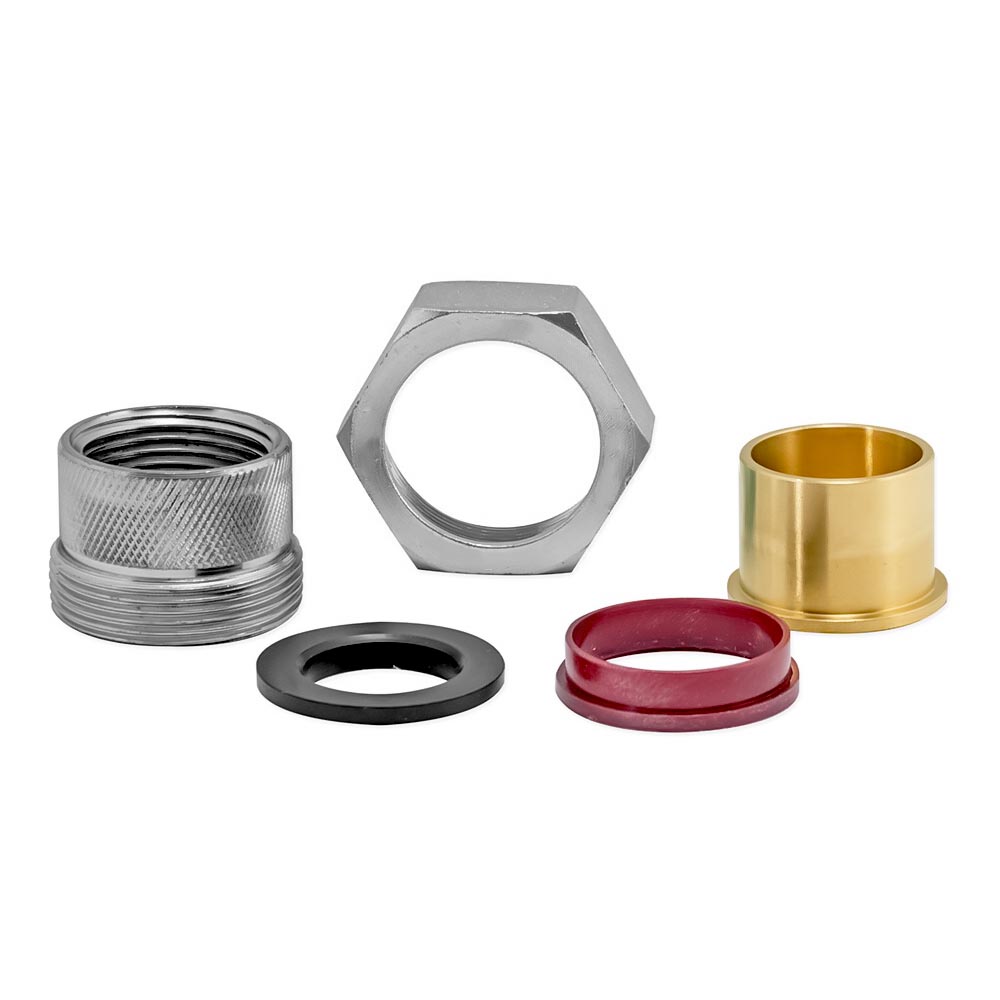

Di electric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female/ male iron pipe thread to female, male or solder copper connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring.
| A Series : STEEL FEMALE THREADED – BRASS SOLDER | |||||||
| Part No. | WDUA015 | WDUA020 | WDUA025 | WDUA032 | WDUA040 | WDUA050 | |
| Size | Inch | ½ | ¾ | 1 | 1 ¼ | 1 ½ | 2 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | |
| B Series : STEEL MALE THREADED – BRASS SOLDER | |||||||
| Part No. | WDUB015 | WDUB020 | WDUB025 | WDUB032 | WDUB040 | WDUB050 | |
| Size | Inch | ½ | ¾ | 1 | 1 ¼ | 1 ½ | 2 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | |

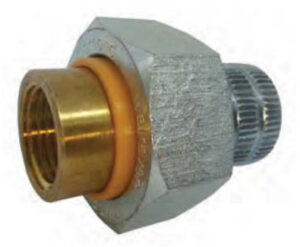

| C Series : STEEL FEMALE THREADED – BRASS FEMALE THREADED | |||||||
| Part No. | WDUC015 | WDUC020 | WDUC025 | WDUC032 | WDUC040 | WDUC050 | |
| Size | Inch | ½ | ¾ | 1 | 1 ¼ | 1 ½ | 2 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | |
| D Series : STEEL FEMALE THREADED – BRASS MALE THREADED | |||||||
| Part No. | WDUD015 | WDUD020 | WDUD025 | WDUD032 | WDUD040 | WDUD050 | |
| Size | Inch | ½ | ¾ | 1 | 1 ¼ | 1 ½ | 2 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | |
| E Series : STEEL MALE THREADED – BRASS MALE THREADED | |||||||
| Part No. | WDUE015 | WDUE020 | WDUE025 | WDUE032 | WDUE040 | WDUE050 | |
| Size | Inch | ½ | ¾ | 1 | 1 ¼ | 1 ½ | 2 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | |
