Material: Flange: Steel acc. to ASTM A108
Tailpiece: Brass
Insulator: Nylon
Finish:
Electro-Galvanization acc. to
Temperature Resistance: -30 C: 82 C
Threading Connection:

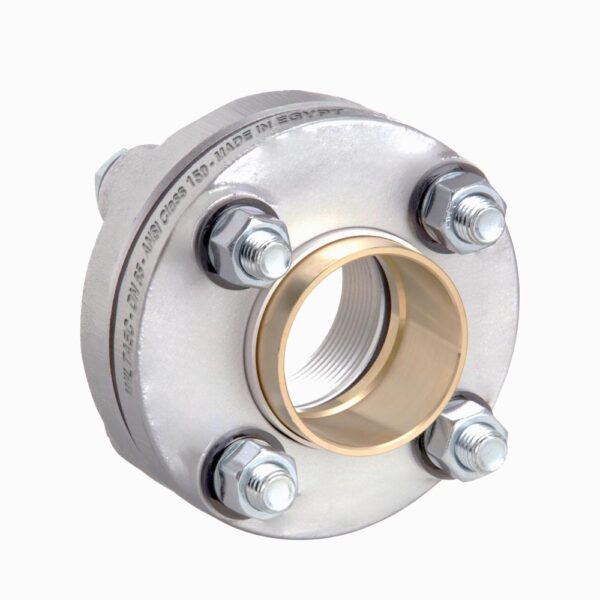

Dielectric Flanged Pipe Fittings are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features an iron pipe thread to copper solder or threaded joint connection. It consists of a flange fitting and a gasket.
| Part No. | Size | Rate | Diameter of Flange | Bolt Circle Number | No. Of Bolts | Size Of Bolts | Diameter Of Bolts’ hole | Diameter Of Raised Face | Height Of Raised Face | Thickness of Flange | |
| Inch | DN | ||||||||||
| WFDUA065 | 2.5 | 65 | BS4504 PN16 | 185 | 145 | 4 | M16 | 18 | 122 | 3 | 20 |
| WFDUB065 | ANSI CLASS 150 | 178 | 140 | 4 | M16 | 19 | 105 | 2 | 17 | ||
| WFDUA080 | 3 | 80 | BS4504 PN16 | 200 | 160 | 8 | M16 | 18 | 138 | 3 | 22 |
| WFDUB080 | ANSI CLASS 150 | 191 | 152 | 4 | M16 | 19 | 127 | 2 | 19 | ||
| WFDUA100 | 4 | 100 | BS4504 PN16 | 220 | 180 | 8 | M16 | 18 | 158 | 3 | 24 |
| WFDUB100 | ANSI CLASS 150 | 229 | 191 | 8 | M16 | 19 | 157 | 2 | 24 | ||
